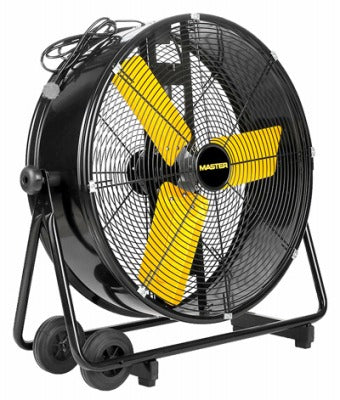

Pinnacle Climate Technologies MAC-24DCT 24 in Barrel Fan

Product Description

The PINNACLE CLIMATE TECHNOLOGIES MAC-24DCT is a 24-inch, two-speed, high-velocity direct drive tilt barrel fan built for heavy-duty air circulation in demanding environments. Powered by a 1/4 HP motor at 120 volts / 60 Hz, it delivers up to 4000 CFM on high speed and 3200 CFM on low speed. The four-blade steel construction provides consistent, high-volume airflow without the maintenance demands of belt-driven units. HVAC technicians, facility managers, and industrial contractors install this fan where portable, directed airflow is required quickly and reliably.

The MAC-24DCT is designed for use on factory floors, in warehouses, agricultural buildings, barns with livestock, and other large open spaces where ventilation and spot cooling are priorities. The swivel cart allows the barrel to be aimed precisely at the target area, making it practical for both stationary setups and job-site situations where airflow direction needs to change. Its portability and rugged build make it equally suited for temporary and permanent placements in commercial and light-industrial settings.

Key Features

• Two-speed operation: 4000 CFM high, 3200 CFM low
• 1/4 HP direct drive motor at 120 volts / 60 Hz
• 24-inch, 4-blade steel fan for high-volume airflow
• Swivel cart for precise directional airflow control
• Rock-solid wheels for easy repositioning on the job site
• Built-in handle for single-person transport

Compatibility

Designed as a portable, direct drive barrel fan suitable for factory, warehouse, agricultural, and general industrial ventilation applications.

Installation Notes

This fan is a plug-in, portable unit and does not require licensed trade installation under most jurisdictions, though facility electricians should verify that the circuit supplying the fan is rated for the draw at 120 volts. Always confirm the outlet and extension cord, if used, are rated for the amperage before operating. Position the fan on a stable, level surface and ensure the swivel lock is engaged before directing airflow to prevent unintended movement during operation.
