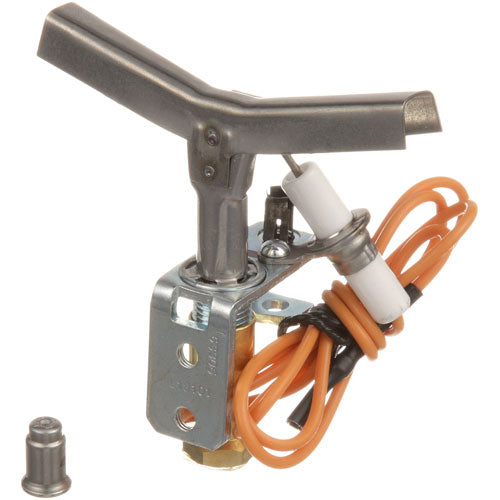

Pilot Assy for Imperial 1097

Product Description

This item for Imperial 1097 is a pilot assembly designed for natural and LP gas. It features a three-way flame pattern and includes necessary components for installation.

• Includes LP and NAT orifices for customization.
• Compatible with T-couples only.
• Factory part number is 6S306.

Product Highlights

This pilot assembly is essential for efficient gas operation in specific oven series.

Product Information

Standard Information

• Weight: 0.18 lbs
• Dimensions: 7 inches x 4 inches x 1 inch

Technical Specifications

• Flame Pattern: 3 way
• Tube Size: 1/4 inch
• Wiring: 30 gauge orange wire
• Includes: 1/8 flat push-on nut
• Compatible Ovens: Henny Penny and Imperial Oven Series
• Factory Number: 6S306
• Orifice Sizes: LP .016 (#26-1556), NAT .026 (#26-1557)
