Pilla Electrical PILLA-BSD120N1 Type 1 Pb Surf Mnt Em Boilr Shutdn 12 amp 120 vac 10 amp 24 vdc

Product Description

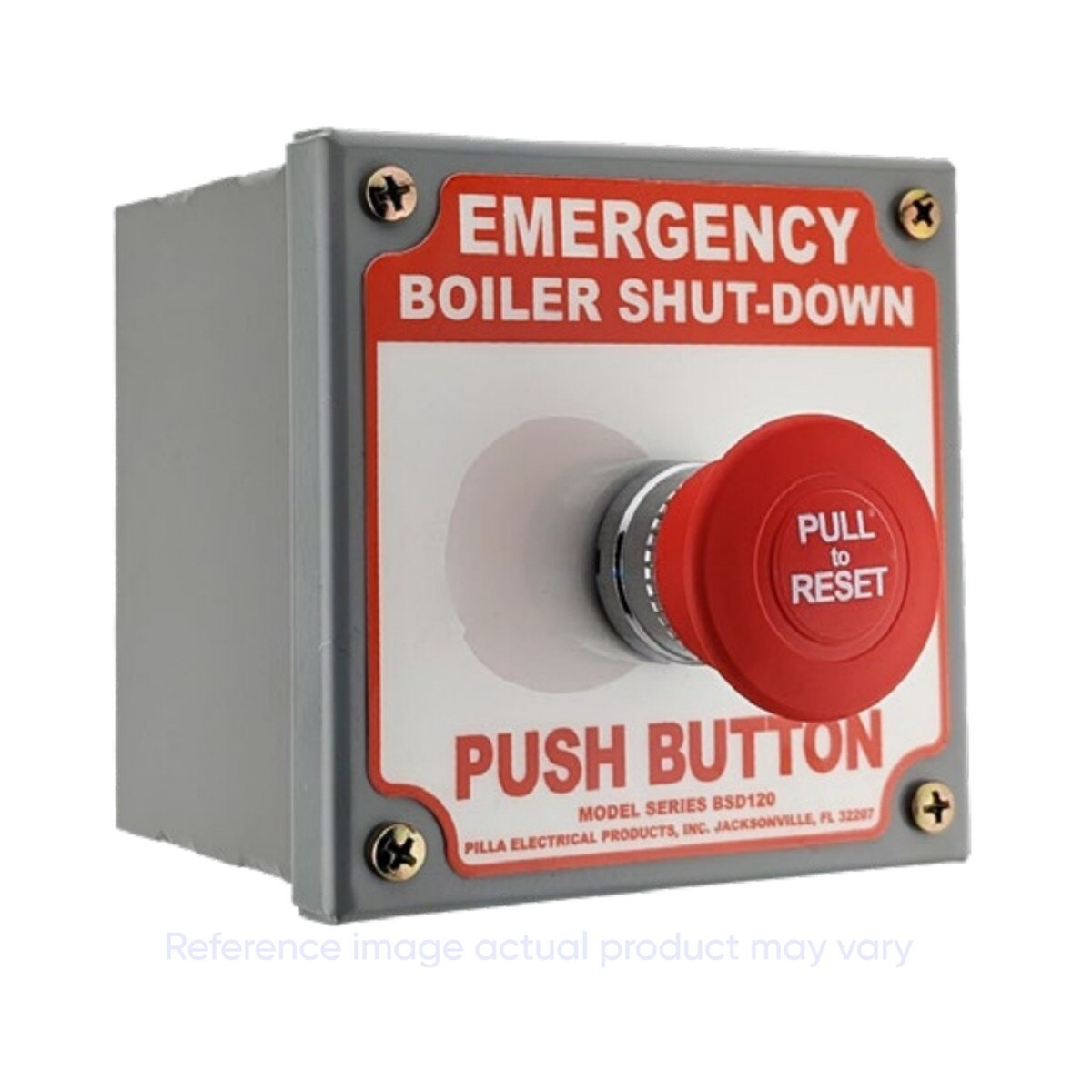

The Pilla Electrical PILLA-BSD120N1 is a Type 1 push button station designed for emergency boiler shut-down applications. This surface mount unit features a 40 mm large, heavy-duty mushroom operator with maintained action, requiring a pull to reset. It is rated for 12 AMP at 120 VAC and 10 AMP at 24 VDC, and is housed in a NEMA 1 enclosure, suitable for general purpose indoor use.

• Large Heavy-Duty mushroom operator, maintained "Pull to Reset"
• Bold, silk screen legends on white enamel aluminum face plate
• 1-6 contact block capacity

Product Highlights

Emergency boiler shut-down station with maintained action mushroom push button and NEMA 1 enclosure.

Product Information

Standard Information

• Brand: PILLA ELECTRICAL
• Manufacturer Part Number: PILLA-BSD120N1

Technical Specifications

• Operator Diameter: 40 mm
• Operator Type: Maintained Action Mushroom Push Button
• Application: Emergency Boiler Shut-Down
• Enclosure Rating: NEMA 1
• AC Current Rating: 12 A
• AC Voltage Rating: 120 VAC
• DC Current Rating: 10 A
• DC Voltage Rating: 24 VDC
• Contact Block Capacity: 1-6
• Mounting Type: Surface Mount
