Pilla Electrical BSD120N1 Series BSD120 Emergency Boiler Shut-Down Push Button Station

Product Description

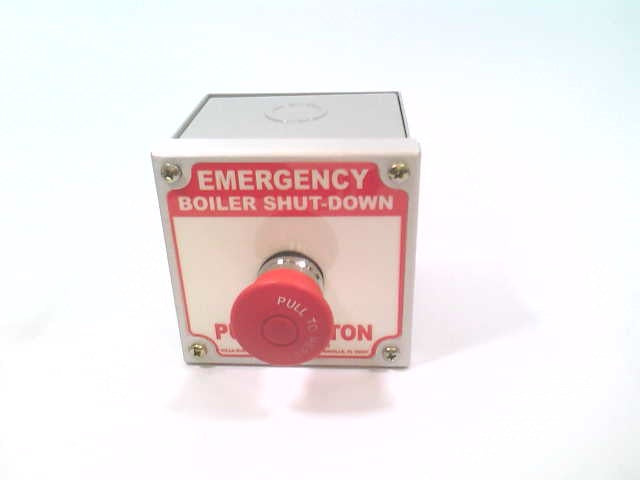

The PILLA ELECTRICAL BSD120N1 Series BSD120 is an emergency boiler shut-down push button station. It features a surface mount NEMA 1 metal backbox with 1/2-3/4" knockout top and bottom, and a maintained (Pull to Reset) 40mm mushroom operator. It carries 24A continuous current and switches 12A@120V AC, 10A@24V DC (Pilot Duty- Inductive Loads).

• Large heavy duty mushroom operator, maintained "Pull to Reset" (standard)
• Maintained "Turn to Reset" mushroom model also available: Add model suffix TW
• Momentary mushroom model also available: Add suffix MO

Product Highlights

Emergency boiler shut-down station with maintained mushroom operator and NEMA 1 enclosure. Suitable for motor start/stop applications.

Product Information

Standard Information

• Brand: PILLA ELECTRICAL
• Manufacturer Part Number: BSD120N1

Technical Specifications

• Continuous Current: 24A
• Switching Capacity: 12A @ 120V AC, 10A @ 24V DC
• Motor Start/Stop: 1.5Hp @ 120V AC, 3Hp @ 240V AC
• Terminal Wire Size: Up to 10 AWG
• Enclosure: NEMA 1 metal backbox
• Contact Block Capacity: 1-6
• Operator: Maintained (Pull to Reset) 40mm mushroom
• Brand: Pilla Electrical Products
• Part #: BSD120N1
• Top Category: Switches
• Category: General Purpose Switches
• Sub Category: Electrical Disconnect Switches
