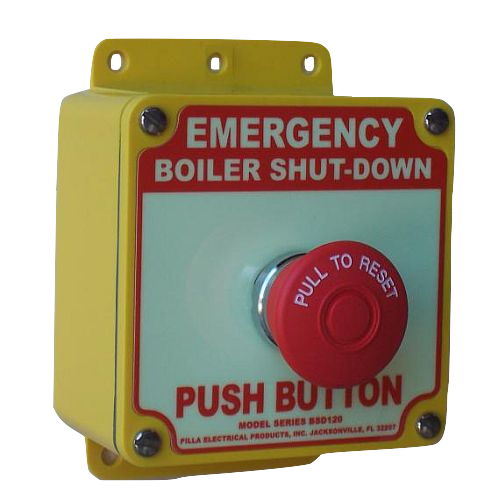

Pilla Electrical BSD120 Series BSD120 Emergency Boiler Shut-Down Push Button Station

Product Description

The PILLA ELECTRICAL BSD120 Series BSD120 is an emergency boiler shut-down push button station. It features a maintained (pull to reset) 40mm mushroom operator and a NEMA 4X & 12 nonmetallic backbox. The station has a 1-3 contact block capacity and accepts up to 10 AWG wires. It is designed for surface mounting.

• Maintained (Pull to Reset) 40mm mushroom operator
• NEMA 4X & 12 nonmetallic enclosure with stainless steel machine screws
• Bold, silk screen legends on white enamel aluminum face plate

Product Highlights

Emergency boiler shut-down push button station with maintained mushroom operator and nonmetallic enclosure.

Product Information

Standard Information

• Brand: PILLA ELECTRICAL
• Manufacturer Part Number: BSD120

Technical Specifications

• Switch: 12A @120V AC, 10A @24V DC (pilot duty - inductive Loads)
• Start/Stop Motors: 1.5 Hp @ 120V AC, 3 HP @ 240V AC, 10 A FLA/60 A LRA @ 24V DC
• Terminals: Accept up to 10 AWG wires
• Operator: Maintained (Pull to Reset) 40mm mushroom operator is standard
• Enclosure: NEMA 4X & 12 nonmetallic backbox
• Contact Block Capacity: 1-3
• Button Style: Mushroom Button
• Button Type: Maintained
• Label Legend: Emergency Boiler Shut Down
• Nema Rating: Nema 4X and 12
• Lockout Lid: No
