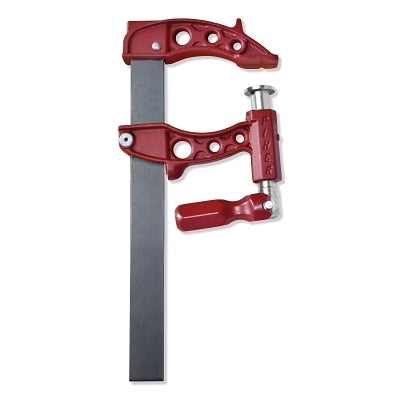

Piher 60100 Maxipress Clamp 40 in Opening 5 in Throat Depth 9000 N

Product Description

The Piher 60100 Maxipress Clamp is a versatile clamp with a 40-inch opening and 5-inch throat depth. Known for its robust construction and powerful clamping force, this tool is essential for woodworking and metalworking projects. The clamp delivers 9,000 N of pressure, making it ideal for heavy-duty tasks.

• 40-inch opening for wide materials
• 5-inch throat depth
• 9,000 N clamping force

Product Highlights

This Piher Maxipress Clamp features a rolled spring steel bar for maximum pressure, a grooved fixed jaw surface for optimal grip, and a spring-activated back brake to keep the moving jaw in position. The double-threaded screw doubles both pressure and speed, and the easy grip handle is dismountable and interchangeable.

Product Information

Standard Information

• Weight: 8.6 lb
• Height: 1.25 inches
• Width: 6.5 inches
• Length: 45 inches
• Manufacturer: Piher
• Country of Origin: Spain

Technical Specifications

• Bar Thickness: 0.3 inches
• Bar Width: 1.4 inches
• Body Material: Nodular Cast Iron Jaws and Heat-Rolled Steel Bar
• Handle Type: Dismountable, Interchangeable, Nylon and Fiberglass
• Load Capacity: 9,000 N
• Opening Size: 40 inches
• Spindle Diameter: 1.1 inches
• Throat Depth: 5 inches
• Weight: 8.6 lb
