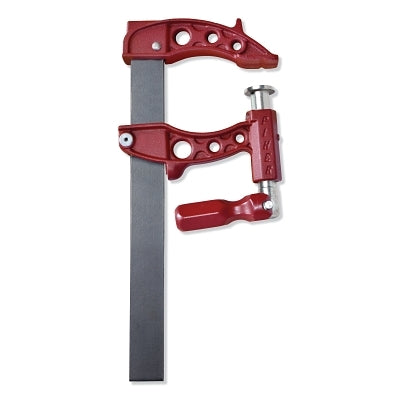

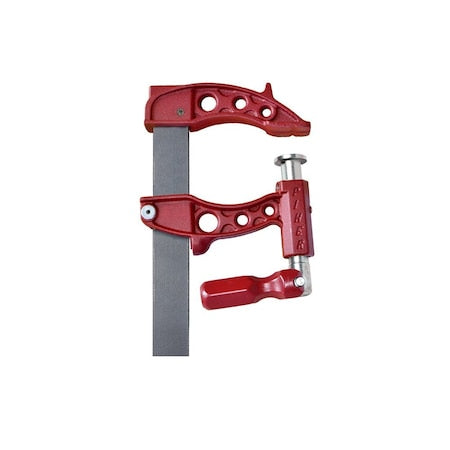

Piher 60040 Maxipress F Piston Clamp 16 Inch Opening 5 Inch Throat Depth 9,000 N

Product Description

The Piher 60040 Maxipress F Piston Clamp is designed for trade professionals requiring reliable clamping solutions. This clamp features a 16-inch opening and a 5-inch throat depth, delivering a clamping force of 9,000 N. Its design incorporates a rolled spring steel bar for maximum pressure maintenance throughout the task.

• 16-inch opening
• 5-inch throat depth
• 9,000 N clamping force

Product Highlights

The Piher Maxipress F Piston Clamp is suitable for various clamping applications, offering exceptional grip and pressure retention. Its fixed jaw surface is grooved for maximum grip, enhancing stability during use. The spring-activated back brake ensures the moving jaw stays firmly in place, while the covered double-threaded screw doubles both pressure and speed, featuring a greasing hole for optimal lubrication. The easy grip handle is dismountable and interchangeable.

Product Information

Standard Information

• Brand: Piher
• MPN: 60040
• Country of Origin: ES
• UPC: 8422473600402

Technical Specifications

• Bar Thickness: 0.3 inches
• Bar Width: 1.4 inches
• Body Material: Nodular Cast Iron Jaws; Heat-Rolled Steel Bar
• Handle Type: Dismountable; Interchangeable; Nylon and Fiberglass
• Load Capacity: 9,000 N
• Opening Size Max: 16 inches
• Spindle Diameter: 1.1 inches
• Throat Depth: 5 inches
• Weight: 5.7 lbs
