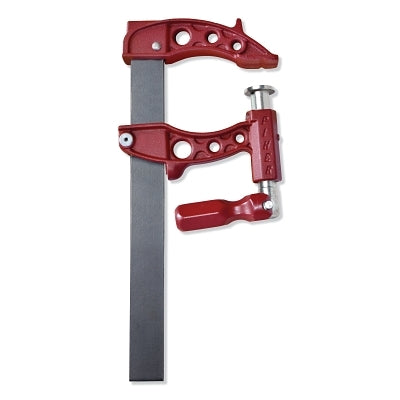

Piher 60030 Maxipress F Piston Clamp 12 Inches 5 Inches Throat 9000 N

Product Description

The Piher 60030 Maxipress F Piston Clamp is designed for trade professionals needing reliable clamping. This tool has a 12 inches opening and a 5 inches throat depth, delivering up to 9000 N of clamping force.

• Rolled spring steel bar provides maximum pressure held throughout the job.
• Fixed jaw surface is grooved to achieve maximum grip.
• Spring activated back brake maintains jaw position.

Product Highlights

The Piher Maxipress F Piston Clamp is ideal for tasks needing high pressure and precision. The grooved fixed jaw ensures a secure grip, and the double-threaded screw enhances both pressure and speed.

Product Information

Standard Information

• Brand: Piher
• MPN: 60030

Technical Specifications

• Bar Thickness: 0.3 inches
• Bar Width: 1.4 inches
• Body Material: Nodular Cast Iron Jaws, Heat-Rolled Steel Bar
• Handle Type: Dismountable, Interchangeable, Nylon and Fiberglass
• Load Capacity: 9000 N
• Opening Size: 12 inches
• Spindle Diameter: 1.1 inches
• Throat Depth: 5 inches
• Weight: 5.2 lb
