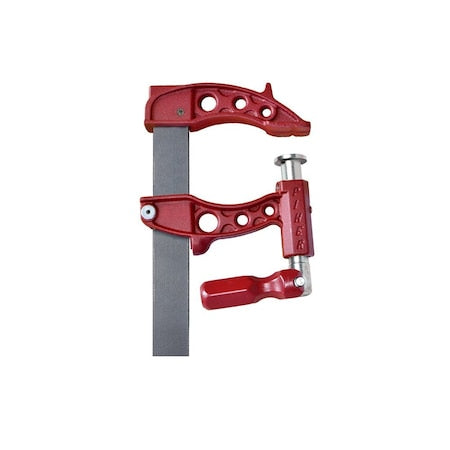

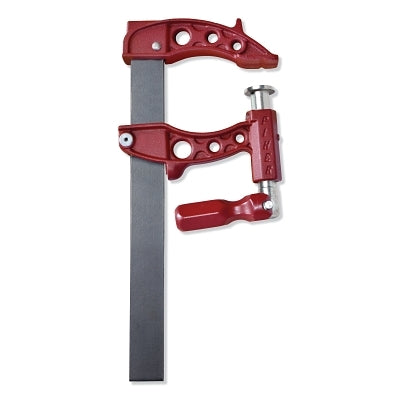

Piher 60030 Maxipress F Piston Clamp 12 in Opening 5 in Throat Depth 9,000 N

Product Description

The Piher 60030 Maxipress F Piston Clamp offers a 12-inch opening and a 5-inch throat depth, delivering up to 9,000 N in clamping force. Ideal for various clamping tasks in workshops.

• Rolled spring steel bar for maximum pressure.
• Fixed jaw with a grooved surface for grip.
• Spring-activated back brake for secure positioning.

Product Highlights

This clamp ensures high efficiency with its rolled spring steel bar, maximum grip from its grooved fixed jaw, and enhanced speed and pressure from its double-threaded screw.

Product Information

Standard Information

• Brand: Piher
• MPN: 60030
• UPC: 8422473600303
• Category: Hand Tools|Clamps & Vises|Clamps & Spreaders|Bar Clamps & Spreaders

Technical Specifications

• Opening Size [Max]: 12 in
• Throat Depth [Nom]: 5 in
• Load Cap. [Nom]: 9,000 N
• Bar Thickness: 0.3 in
• Bar Width: 1.4 in
• Body Material: Nodular Cast Iron Jaws; Heat-Rolled Steel Bar
• Handle Type: Dismountable; Interchangeable; Nylon and Fiberglass
• Spindle Diam: 1.1 in
• Wt: 5.2 lb
