Piher 60020 Maxipress F Piston Clamp 8 inch Opening 5 inch Throat Depth 9000 N

Product Description

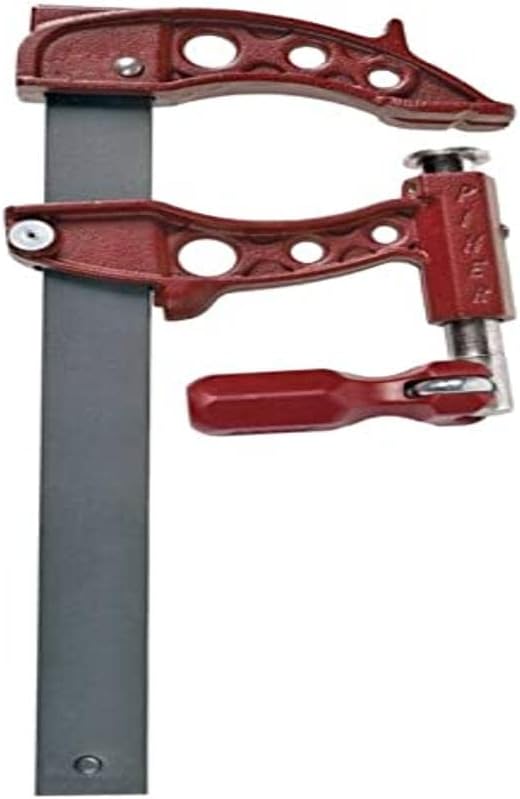

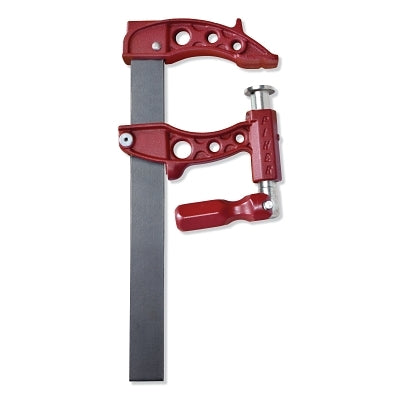

The Piher 60020 Maxipress F Piston Clamp is crucial for clamping tasks. This clamp features an 8 inch opening and a 5 inch throat depth. The clamp offers a load capacity of 9000 N for robust performance.

• 8 inch maximum opening
• 5 inch throat depth
• Load capacity of 9000 N

Product Highlights

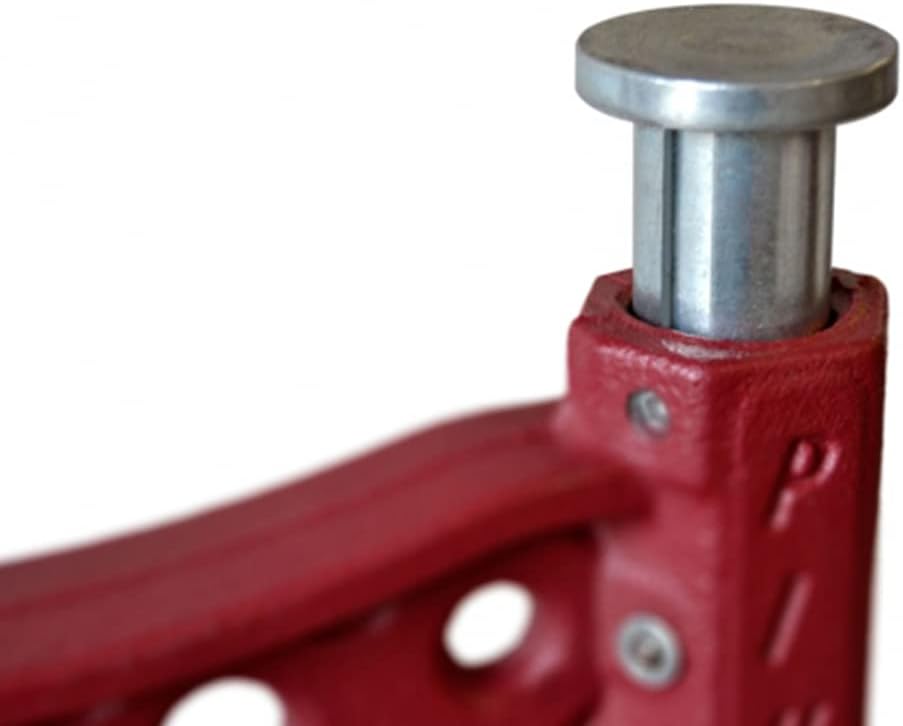

The Piher Maxipress F Piston Clamp includes a rolled spring steel bar for maximum pressure during tasks. The fixed jaw surface is grooved, ensuring a strong grip. A spring-activated back brake holds the moving jaw firmly in place. The clamp has a double-threaded screw for better pressure and speed, with a grease hole for lubrication. The handle is easy to grip and can be dismounted or replaced.

Product Information

Standard Information

• Brand: Piher
• MPN: 60020
• UPC: 8422473600204
• Country of Origin: Spain

Technical Specifications

• Maximum Opening: 8 inch
• Throat Depth: 5 inch
• Load Capacity: 9000 N
• Bar Thickness: 0.3 inch
• Bar Width: 1.4 inch
• Spindle Diameter: 1.1 inch
• Body Material: Nodular Cast Iron Jaws; Heat-Rolled Steel Bar
• Handle Type: Dismountable; Interchangeable; Nylon and Fiberglass
