Piher 12275 XXL Clamp 275 cm / 108 inches Capacity

Product Description

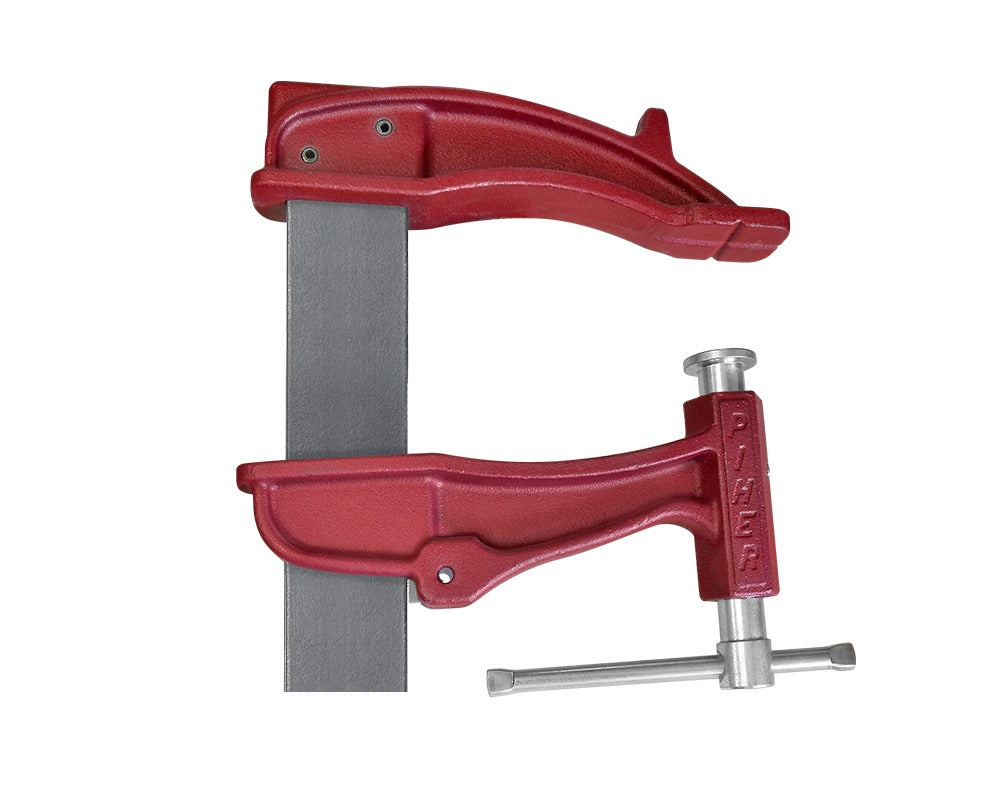

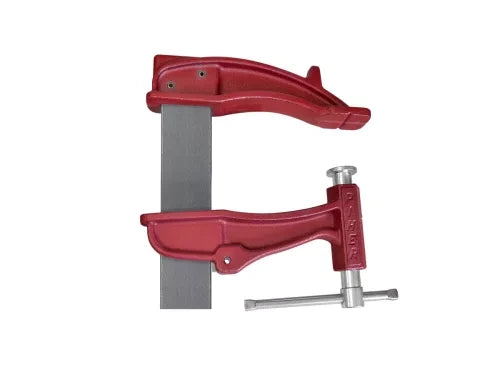

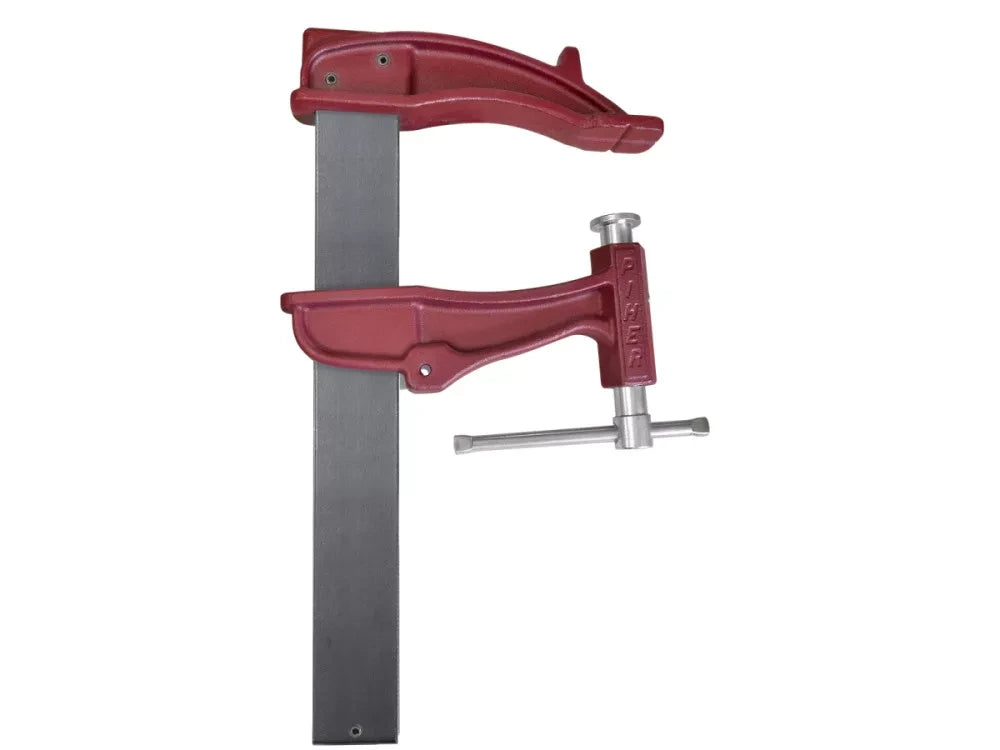

Piher 12275 is a XXL clamp with a 275 cm (108 in) clamping capacity designed for heavy-duty woodworking and metalworking tasks. It features a rolled steel bar and a movable jaw with an anti-slip brake for secure holding. Specifications include a 19 cm throat depth, a maximum pressure of 22,000 N, and a robust 60 x 12 mm bar suitable for long workpieces and industrial clamping applications.

• 275 cm (108 in) clamping capacity with 2750 mm jaw span for long workpieces
• Rolled steel bar 60 x 12 mm with maximum pressure 22,000 N
• Throat depth 19 cm (190 mm) and anti-slip brake on the moving jaw

Product Highlights

XXL 275 cm capacity; 60 x 12 mm rolled steel bar; 22,000 N max pressure; 19 cm throat depth with anti-slip moving jaw

Product Information

Standard Information

• Brand: PIHER
• Manufacturer Part Number: 12275
• Country of Origin: Spain

Technical Specifications

• Brand: PIHER
• MPN: 12275
• Model: XXL-275
• Clamping Capacity: 275 cm / 108 inches (2750 mm)
• Jaw Span: 275 cm (2750 mm)
• Throat Depth: 19 cm (190 mm)
• Bar Size: 60 x 12 mm rolled steel
• Maximum Pressure: 22,000 N
• Moving Jaw: Anti-slip brake on moving jaw
• Weight: 46.97 lb
• Length: 117.0 in
• Width: 10.75 in
• Height: 2.0 in
• Manufacturer: Piher Industrial
