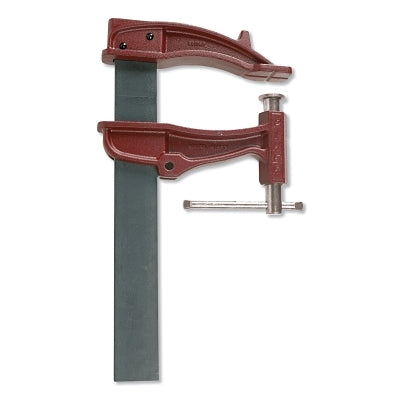

Piher 12120 Extra Strong XXL Bar Clamp 120 cm Opening 19 cm Throat Depth 48 in Capacity

Product Description

The Piher 12120 Extra Strong XXL Bar Clamp is built for demanding tasks. With 120 cm opening and 19 cm throat depth, it ensures a secure and strong grip. Its capacity extends up to 48 inches, ideal for heavy-duty applications.

• Rolled spring steel bar for consistent pressure
• Nodular cast iron jaws
• Piston Clamp with double threaded screw

Product Highlights

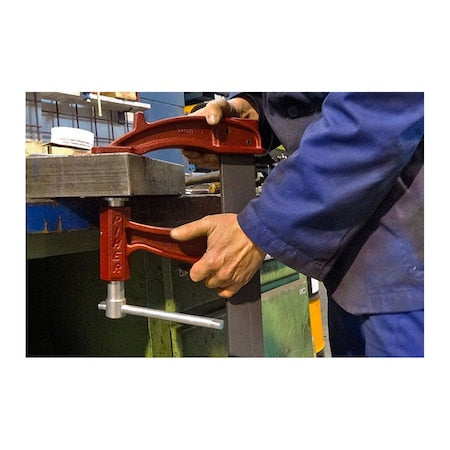

This bar clamp features a non-slip brake to prevent loosening. It has a grooved support surface to grip curved and angled pieces, making it versatile for various jobs. The epoxy paint-coated cast iron and steel body material ensure durability.

Product Information

Standard Information

• Brand: Piher
• MPN: 12120
• Category: Bar Clamps & Spreaders

Technical Specifications

• Opening Size (Max): 120 cm
• Throat Depth: 19 cm
• Capacity: 48 inches
• Bar Thickness: 12 mm
• Bar Width: 60 mm
• Body Material: Epoxy Paint Coated Cast Iron; Steel
• Handle Type: Steel Bar
• Spindle Diameter: 1.5 inches
• Weight: 27.8 lb
