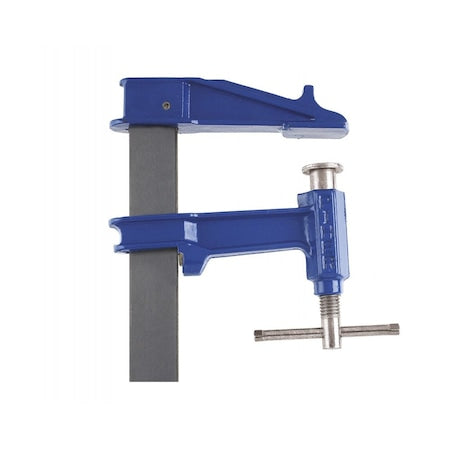

Piher 5100 Piston R Bar Clamp 100 cm Opening 15 cm Throat Depth 40 in Capacity

Product Description

The Piher 5100 Piston R Bar Clamp is designed for professionals in need of reliable clamping solutions. This clamp features a 100 cm opening and a 15 cm throat depth, making it ideal for a variety of applications.

• Piston clamp with double-threaded screw
• Non-slip brake to prevent loosening

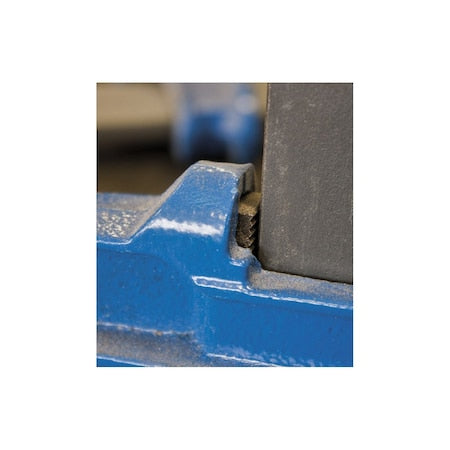

• Nodular cast iron jaws for durability

Product Highlights

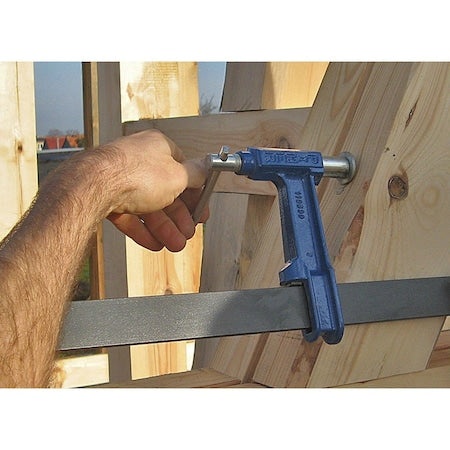

This bar clamp from Piher offers robust functionality with its double-threaded screw, which enhances pressure and speed. The non-slip brake ensures the clamp remains secure during use. Nodular cast iron jaws and rolled spring steel bars maintain maximum pressure throughout the job, making it perfect for uneven surfaces and tubes.

Product Information

Standard Information

• Brand: Piher
• MPN: 5100
• UPC: 8422473051006
• Country of Origin: Spain
• Category: Bar Clamps & Spreaders

Technical Specifications

• Opening Size: 100 cm
• Throat Depth: 15 cm
• Spindle Diameter: 1.3 inches
• Bar Thickness: 10 mm
• Bar Width: 40 mm
• Body Material: Epoxy Paint Coated Cast Iron; Steel
• Handle Type: Steel Bar
• Weight: 11.5 lb
