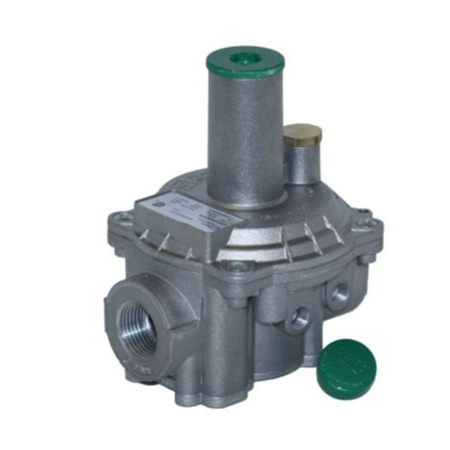

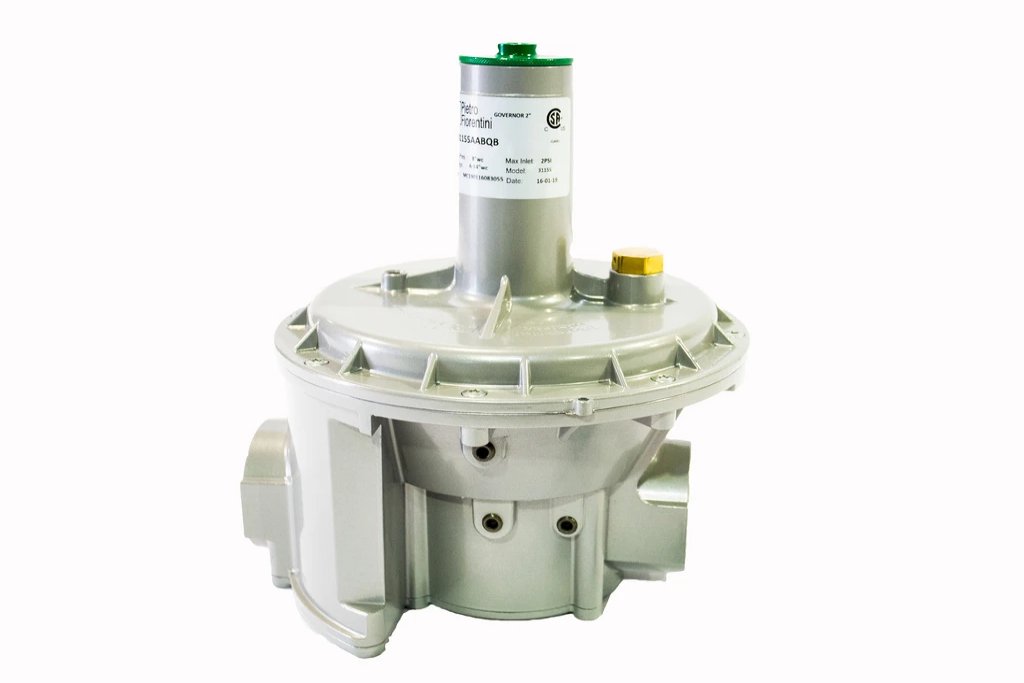

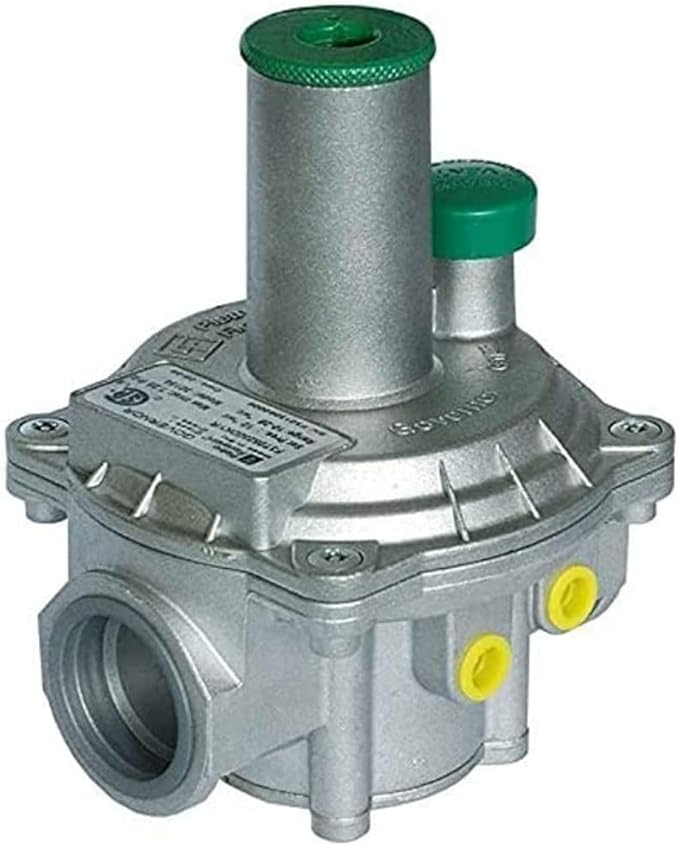

Pietro Fiorentini 31052 Governor Series Gas Pressure Regulator with Vent Limiter

Product Description

The Pietro Fiorentini 31052 is a three-quarter inch NPT line pressure gas regulator designed for indoor applications. It operates on a two PSIG indoor piping system and is ANSI Z21.80/CSA 6.22 certified. This regulator is compatible with natural gas and propane (LP) gas.

• Inlet filter included
• Features a positive dead-end lockup
• Can be installed horizontally or vertically with vent limiter

Product Highlights

This governor series gas pressure regulator is made for reliable operation in different piping configurations. Its compact design makes it suitable for various indoor installations.

Product Information

Standard Information

• Brand: Pietro Fiorentini
• MPN: 31052

Technical Specifications

• Inlet pressure: 2 PSIG
• Outlet Range: 6-14 inches WC
• Gas Type: Natural gas or LP (Propane)
• Certification: ANSI Z21.80/CSA 6.22
• Nat. Gas Max. BTUs: 1,155,000
• Regulator Type: Governor
• Outlet Pressure: Propane - 11 inches WC, Nat. Gas - 8 inches WC
• Application: 2 PSI piping systems
• Feature: Vent limiter installed
• Fuel Type: Propane and Natural Gas
• Connections: Three-quarter inch FPT
• Propane Max. BTUs: 1,819,125
• Inlet Connection Size: 0.5 inches
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: National Pipe Tapered
• Maximum Operating Pressure: 7.25 pounds per square inch
• Number of Ports: 4
• Outlet Connection Size: 0.75 inches
• Specification Met: CSA 6.22a-2005 ANSI Z21.80A2005 Class I
• Item model number: F30052
• Size: F31052
• End Connection 1: NPT
• End Connection 2: NPT
• Material: Aluminum Alloy
• Pressure - Maximum: 7 psi
• Valve Size: 3/4 inches
• Valve Type: Gas Regulator Valve
