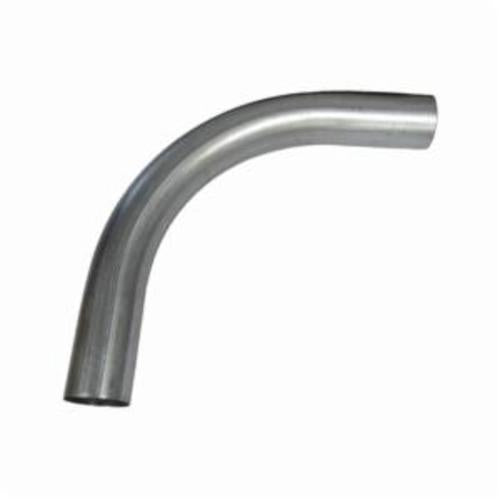

Picoma 8346 2 EMT Elbow 90deg

Product Description

The Picoma 8346 is a 2-inch EMT elbow designed to change the direction of raceway installations. Made from steel, this elbow features a galvanized outside diameter with epoxy modified acrylic inside diameter. It is recognized as an equipment grounding conductor by the NEC. This product is made and melted in the United States, ensuring high quality and compliance with U.S. standards.

• Standard radius for effective corner transitions.
• Inline galvanized OD.
• Application suited for EMT conduit systems.

Product Highlights

The Picoma 8346 is ideal for electricians and contractors looking for reliable conduit fittings that meet NEC requirements.

Product Information

Standard Information

• Catalog Number: 8346
• Manufacturer: Picoma Industries

Technical Specifications

• Angle: 90 degrees
• Application: Used to change the direction of a raceway
• Material: Steel
• Inside Diameter: 2.067 inches
• Outside Diameter: 2.197 inches
• Made in USA: Yes
• Country of Origin: United States
• Standards: UL 797, CSA C22.2 83.1, ANSI C 80.3
