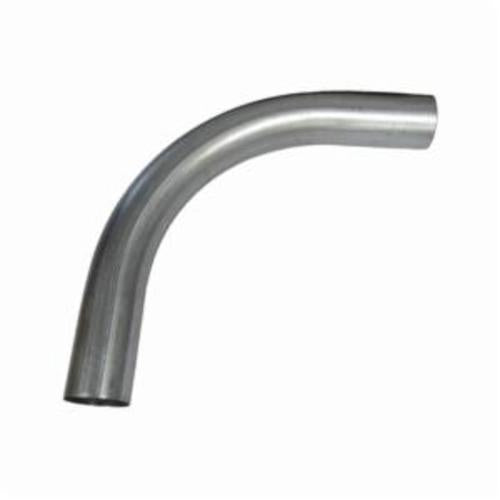

Picoma 8345 Standard Radius Conduit Elbow 90 deg 1-1/2 in Threaded

Product Description

The Picoma 8345 Standard Radius Conduit Elbow is designed for use in electrical conduit systems. It helps in changing the direction of a raceway efficiently. This elbow is made of steel and is ideal for EMT applications. The product is made and melted in the United States, ensuring high quality and compliance with standards.

• Standard radius for effective raceway navigation
• Made from steel with epoxy modified acrylic finish
• Recognized by NEC for equipment grounding conductor

Product Highlights

The Picoma 8345 elbow offers durable construction with inline galvanized OD and a seamless inner diameter coating for optimal performance.

Product Information

Standard Information

• Catalog Number: 8345
• Manufacturer: Picoma Industries

Technical Specifications

• Material: Steel
• Application: Used to change the direction of a raceway
• Angle: 90 deg
• Inside Diameter: 1.610 inches
• Outside Diameter: 1.740 inches
• Radius: 8-1/4 inches
• Finish: Epoxy Modified Acrylic/Galvanized
• Mfg Standards/Approvals: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Country of Origin: United States
