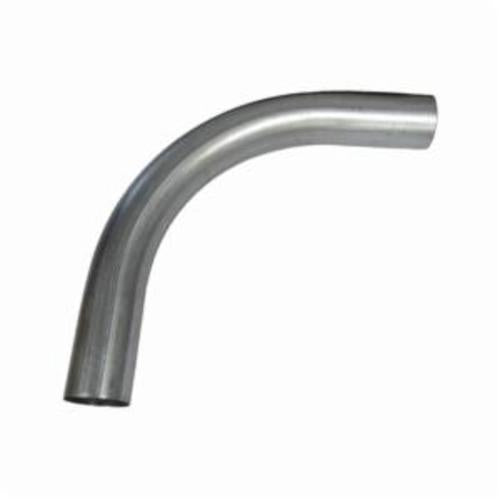

Picoma 8344 Standard Radius Threaded Conduit Elbow

Product Description

The Picoma 8344 is a standard radius threaded conduit elbow designed for electrical applications. This conduit elbow facilitates changes in the direction of a raceway, ensuring reliable performance in various installations. The product is made from high-quality steel with an epoxy modified acrylic finish for durability.

• Standard radius design for efficient conduit routing
• Constructed from steel with an epoxy modified acrylic finish
• Recognized grounding conductor by NEC standards

Product Highlights

This conduit elbow is suitable for EMT conduit applications, providing a reliable and standard solution for electrical conduits.

Product Information

Standard Information

• Brand: Picoma
• Part Number: P1214

Technical Specifications

• Angle: 90 deg
• Application: For changing the direction of a raceway
• Color: Silver/Gray
• Country of Origin: US
• Dimensions: 1.38 in ID x 1.51 in OD
• Finish: Epoxy Modified Acrylic/Galvanized
• Material: Steel
• Mfg Standards/Approvals: Buy American Act Compliant, RoHS Compliant, UL 797, CSA C22.2 83.1, ANSI C 80.3
• Package Height: 7.0 in
• Package Length: 17.0 in
• Package Weight: 27.0 lb
• Package Width: 16.0 in
• Radius: 7-1/4 in
• Suitable For Use With: EMT Conduit
• Trade Size: 1-1/4 in
• Type: Standard Radius Threaded
