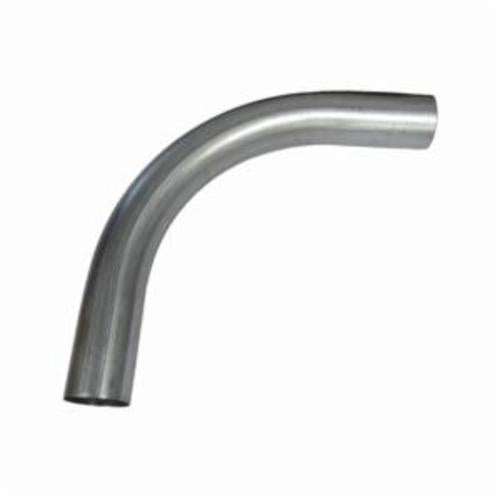

Picoma 8343 Standard Radius Threaded Conduit Elbow 90 deg 1 in

Product Description

The Picoma 8343 is a standard radius threaded conduit elbow designed for use in electrical conduit applications. This fitting allows for a change in direction of a raceway at a ninety-degree angle. Constructed from steel and finished with epoxy modified acrylic and galvanized coatings, this elbow is durable and reliable for various installations.

• Made in the USA
• EMT recognized as an equipment grounding conductor
• Standard radius design for easy installation

Product Highlights

This conduit elbow is ideal for use with EMT conduit, providing a secure and effective way to navigate bends in electrical systems.

Product Information

Standard Information

• Brand: Picoma
• Part Number: P1213

Technical Specifications

• Angle: 90 deg
• Application: For changing the direction of a raceway
• Color: Silver/Gray
• Country of Origin: US
• Dimensions: 1.049 in ID x 1.163 in OD
• Finish: Epoxy Modified Acrylic/Galvanized
• Material: Steel
• Mfg Standards/Approvals: Buy American Act Compliant, RoHS Compliant, UL 797, CSA C22.2 83.1, ANSI C 80.3
• Package Height: 7.0 in
• Package Length: 14.0 in
• Package Weight: 23.0 lb
• Package Width: 14.0 in
• Radius: 5-3/4 in
• Suitable For Use With: EMT Conduit
• Trade Size: 1 in
• Type: Standard Radius Threaded
