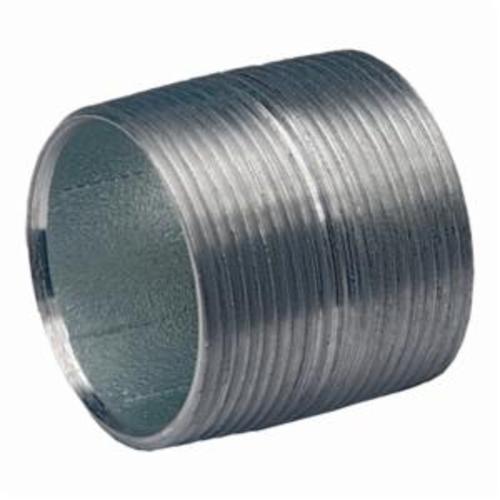

Picoma 5671 Conduit Nipple 1-1/2 in, 1-1/2 X 1 3/4 For Use With Rigid Conduit

Product Description

The Picoma Conduit Nipple with MPN 5671 is designed for connecting enclosures, boxes, gutters, and wireways. It is a conduit nipple ideal for installations requiring compliance with the NEC. This conduit nipple is made from steel and has a hot dipped galvanized finish.

• Recognized as a grounding conductor by the NEC.
• Manufactured in the United States.
• Standard NPT tapered pipe threads.

Product Highlights

The Picoma conduit nipple is suitable for use with rigid conduit and is built to last. It features dimensions that meet standard requirements for electrical applications.

Product Information

Standard Information

• Brand: Picoma
• MPN: 5671

Technical Specifications

• Application: For nipples that are conduits two feet or less in length
• Color: Silver/Gray
• Country of Origin: US
• Dimensions: 1.624 inches ID x 1.9 inches OD x 1.75 inches long
• Finish: Hot Dipped Galvanized
• Material: Steel
• Manufacturing Standards/Approvals: Buy American Act Compliant, RoHS Compliant, UL 6, CSA C22.2 45, ANSI C 80.1, ASME B1.20.1, Federal Specification WW-C-581
• Package Height: 5.75 inches
• Package Length: 12.5 inches
• Package Weight: 7.0 pounds
• Package Width: 5.5 inches
• Size: 1-1/2 inches
• Suitable For Use With: Rigid Conduit
• Warranty: Limited
