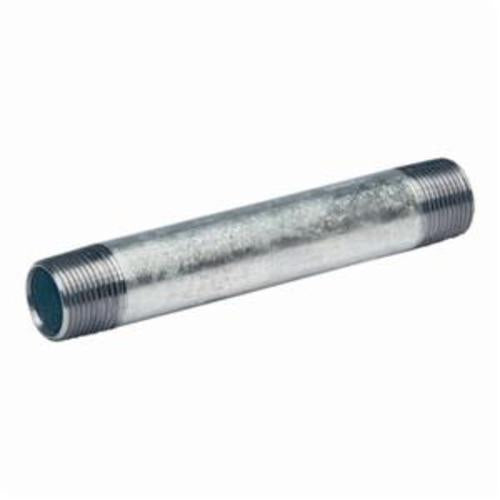

Picoma 5575 Conduit Nipple 3/4 in, 3/4 X 6 For Use With Rigid Conduit

Product Description

The Picoma 5575 Conduit Nipple is designed for use with rigid conduits, providing a reliable connection for electrical installations. Measuring three-fourths of an inch in diameter and six inches in length, this conduit nipple is constructed from steel and hot dipped galvanized for enhanced durability. Ideal for applications requiring conduits up to two feet long, it connects enclosures, boxes, gutters, and wireways safely and securely.

• Recognized by the NEC as an equipment grounding conductor
• Manufactured in the United States
• Features standard NPT tapered pipe threads for easy installation

Product Highlights

This conduit nipple is essential for ensuring proper electrical connections.

Product Information

Standard Information

• Brand: Picoma
• Part Number: P4475

Technical Specifications

• Application: For conduit connections of two feet or less
• Color: Silver/Gray
• Country of Origin: US
• Dimensions: 0.836 inches ID x 1.05 inches OD x 6 inches long
• Finish: Hot Dipped Galvanized
• Material: Steel
• Manufacturing Standards: Buy American Act Compliant, RoHS Compliant, UL 6, CSA C22.2 45, ANSI C 80.1, ASME B1.20.1, Federal Specification WW-C-581
• Package Dimensions: Height 5.0 inches, Length 7.0 inches, Width 7.0 inches
• Package Weight: 13.0 lb
• Size: 3/4 inches
• Suitable For Use With: Rigid Conduit
• Warranty: Limited
