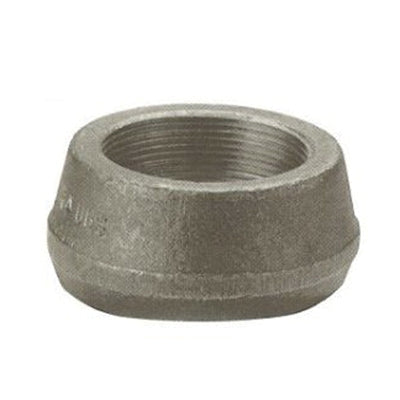

Phoenix TOL03.0X6-5 Trans-O-Con Class 3000 Forged Carbon Steel Threadolet 3 x 6 - 5

Product Description

The Phoenix TOL03.0X6-5 is a Trans-O-Con Class 3000 forged carbon steel threadolet suitable for various plumbing applications. This product is designed from high-quality materials to ensure reliable performance.

• Constructed for 100% pipe strength with unrestricted fluid flow.
• Features fast and easy installation without the need for additional cutting or shaping.
• Designed for strength, quality, and low initial cost, suitable for repeated use.

Product Highlights

Ideal for welding tees, reinforced branches, and non-reinforced branches, the Phoenix TOL03.0X6-5 delivers solid performance across numerous industrial applications.

Product Information

Standard Information

• Brand: Phoenix
• Manufacturer: Phoenix Forge

Technical Specifications

• Connection Size: 3 x 6 - 5 in
• Connection Type: FNPT
• Inside Diameter: 3.203 in
• Item Name: Threadolet
• Length: 2 in
• Material Specifications: ASTM A105, ASTM A350 LF2
• Material: Carbon Steel
• Method of Manufacturer: Forged
• Outside Diameter: 4.125 in
• Pressure Class: Class 3000
• Sub Brand: Trans-O-Con
• Standards/Certifications: ASME SA105, B16.11, MSS SP-97, ASME B31.1, B31.4, B31.3, B31.8, B1.20.1, MSS SP-97, SP-25, NACE MRO175
• Applications: Used on welding tees, reinforced branches, non-reinforced branches
