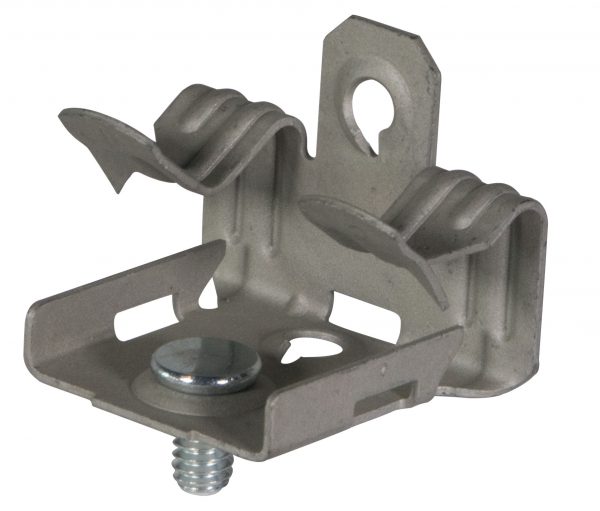

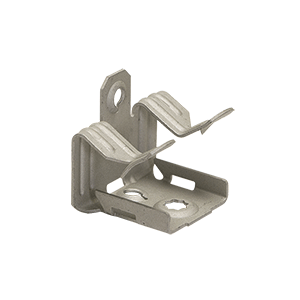

Phoenix Support Systems F2-4 F - Flange Clip (1/8 inches - 1/4 inches flange thickness / 100 pack)

Product Description

Phoenix Support Systems F2-4 is a multi-use flange clip designed to support threaded rod, electrical boxes, and bridal rings from beam flanges. The spring steel clip accepts 1/4-20 thread forms and fits flange thicknesses from 1/8" to 1/4". Punched holes allow zip tie attachments, and the Phoenix Vanguard chrome-free duplex finish provides corrosion resistance (1000 hour salt spray per ASTM B117). Installation requires only a hammer; no additional tools.

• Supports threaded rod, electrical boxes, and bridal rings from beam flanges; fits 1/8"�1/4" flange thickness.
• Forms 1/4-20 threads for threaded rod applications and includes punched holes for zip tie attachments.
• Constructed from spring steel with Phoenix Vanguard chrome-free duplex finish; UL certification E490608; hammer-on installation.

Product Highlights

Beam flange clamp for 1/8"�1/4" flanges with 1/4-20 thread forms, punched zip tie holes, Phoenix Vanguard finish, and UL E490608.

Product Information

Standard Information

• Brand: PHOENIX SUPPORT SYSTEMS
• Manufacturer Part Number: F2-4
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: F2-4
• Catalog Number: F2-4
• Product Name: F - Flange Clip
• Material: Spring Steel
• Finish: Phoenix Vanguard chrome-free duplex coating (meets 1000 hour salt spray per ASTM B117; WEEE, ELV and RoHS compliant; approved for outdoor and indoor use)
• Flange Thickness: 1/8" 6 1/4"
• Thread Form: 1/4-20 thread forms

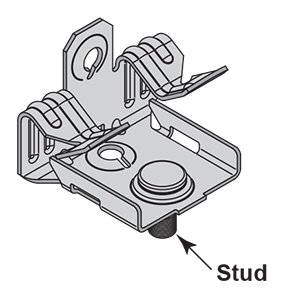

• Stud Description: No stud (for F2-4); optional 1/4-20 x 3/8" long on S variants
• Installation: Hammer-on installation (no tools beyond hammer required)
• Applications: Support for threaded rod, electrical boxes, and bridal rings from beam flanges; punched holes for zip tie applications
• Certifications: UL E490608
• Mounting Type: Beam flange clamp
• Box Quantity: 100
