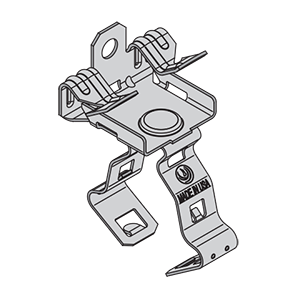

Phoenix Support Systems F2-4 C8-12 Flange Clip with Conduit Clip (Fits 1/8 to 1/4 in Flange, 1/2 and 3/4 in Conduit, Box of 50)

Product Description

Phoenix Support Systems F2-4 C8-12 is a flange clip with an integrated conduit clip designed to support 1/2 and 3/4 inch EMT and rigid conduit from beam flanges. The clip is stamped with flange thickness range and installs by hammering onto the beam flange. Made from spring steel with Phoenix Vanguard (VG) finish, it provides corrosion resistance and meets ASTM B117 1000 hour salt spray performance.

• Supports 1/2 and 3/4 inch EMT and rigid conduit; conduit clip rotates 360 degrees
• Hammer-on installation for beam flanges; flange thickness range stamped on part
• Spring steel construction with Phoenix Vanguard (VG) finish; ASTM B117 1000 hour corrosion performance; UL E490608

Product Highlights

Hammer-on flange clamp for 1/2�3/4 in conduit; 360� rotating conduit clip; spring steel with VG corrosion-resistant finish; fits 1/8�1/4 in flange.

Product Information

Standard Information

• Brand: PHOENIX SUPPORT SYSTEMS
• Manufacturer Part Number: F2-4 C8-12
• Country of Origin: United States

Technical Specifications

• Manufacturer: Phoenix Support Systems
• Manufacturer Part Number: F2-4 C8-12
• Product Type: Flange clip with conduit clip / Flanged hammer-on conduit-to-beam clamp with conduit clip
• Conduit Size: 1/2 inch and 3/4 inch (EMT, Rigid)
• Min-Max Flange Thickness: 1/8" � 1/4"
• Material: Spring Steel
• Finish: VG - Phoenix Vanguard (chrome free duplex coating; zinc-rich basecoat with aluminum-rich organic topcoat)
• Corrosion Performance: 1000 hour salt spray per ASTM B117
• UL Certification: UL E490608
• Weight (each): 0.0959 lbs
• Box Quantity: 50
• Installation Method: Hammer-on
• Conduit Clip Rotation: 360 degrees
