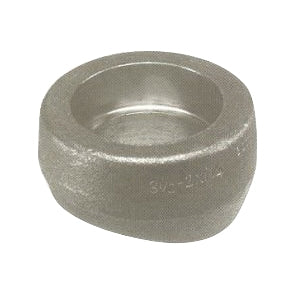

Phoenix SOL36.112.34 Sockolet Class 3000 3/4 x 36 - 1-1/2 in

Product Description

The Phoenix SOL36.112.34 is a Sockolet designed for use in piping systems. This product features a connection size of three quarters x thirty-six to one and a half inches with a socket weld connection type.

• Fully forged construction ensures pipe strength and fluid flow.
• Low installation cost with no need for cutting or shaping.
• Applications include welding tees and reinforced branches.

Product Highlights

Utilizes Trans-O-Con design principles for optimized performance and strength.

Product Information

Standard Information

• Brand: Phoenix
• Manufacturer: Phoenix Forge

Technical Specifications

• Connection Size: 3/4 x 36 - 1-1/2 in
• Connection Type: Socket Weld
• Inside Diameter: 0.824 in
• Item Name: Sockolet
• Length: 1.063 in
• Material Specifications: ASTM A105, ASTM A350 LF2
• Material: Carbon Steel
• Method of Manufacturer: Forged
• Pressure Class: Class 3000
• Sub Brand: Trans-O-Con
• Standards/Certifications: ASME SA105, B16.11, MSS SP-97, ASME B31.1, B31.4, B31.3, B31.8, MSS SP-97, SP-25, NACE MRO175
• Applications: Used on welding tees, reinforced branches, non-reinforced branches
