Phoenix International 1200200 DryRod Type 300 Horizontal Electrode Oven, 120 V 400 lb Capacity

Product Description

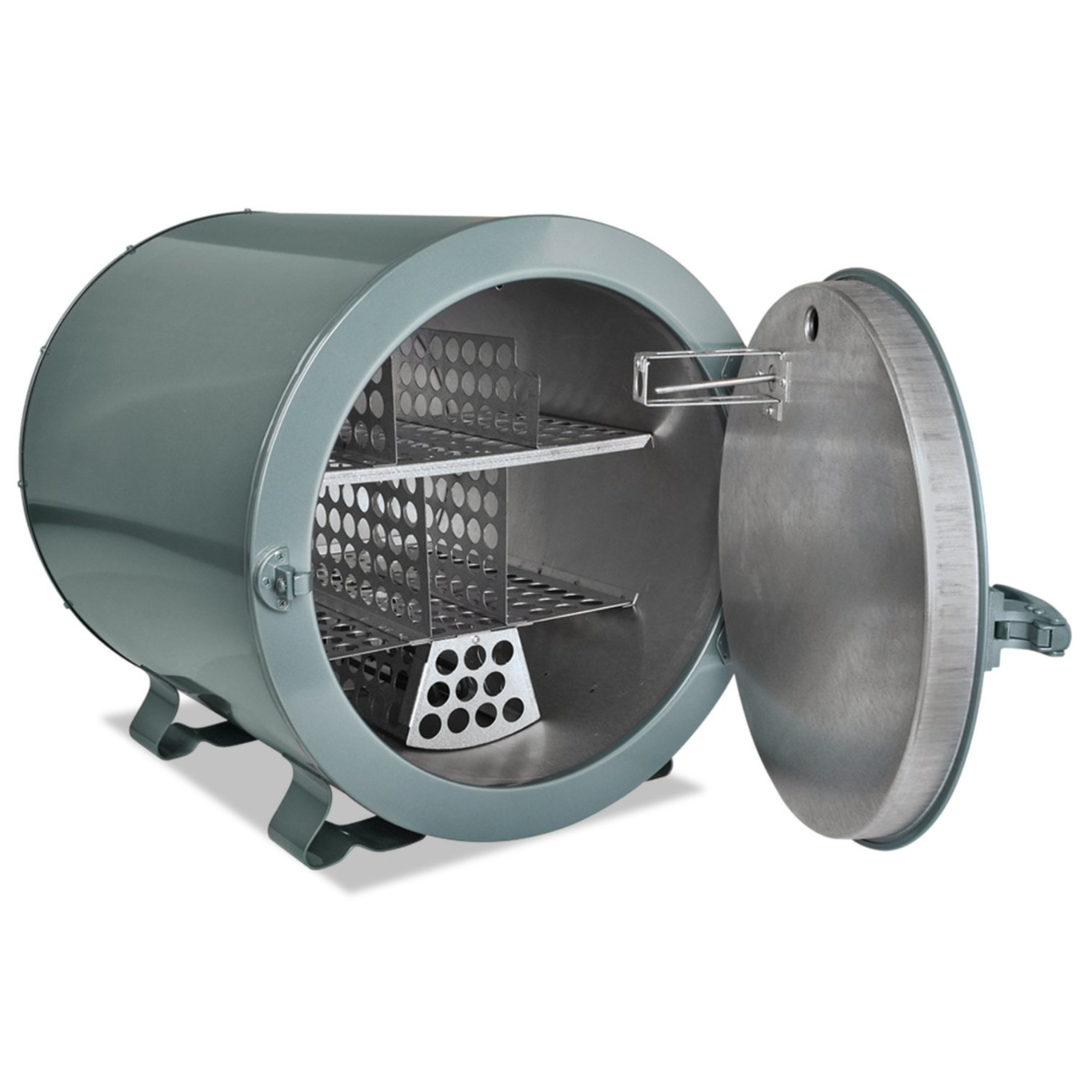

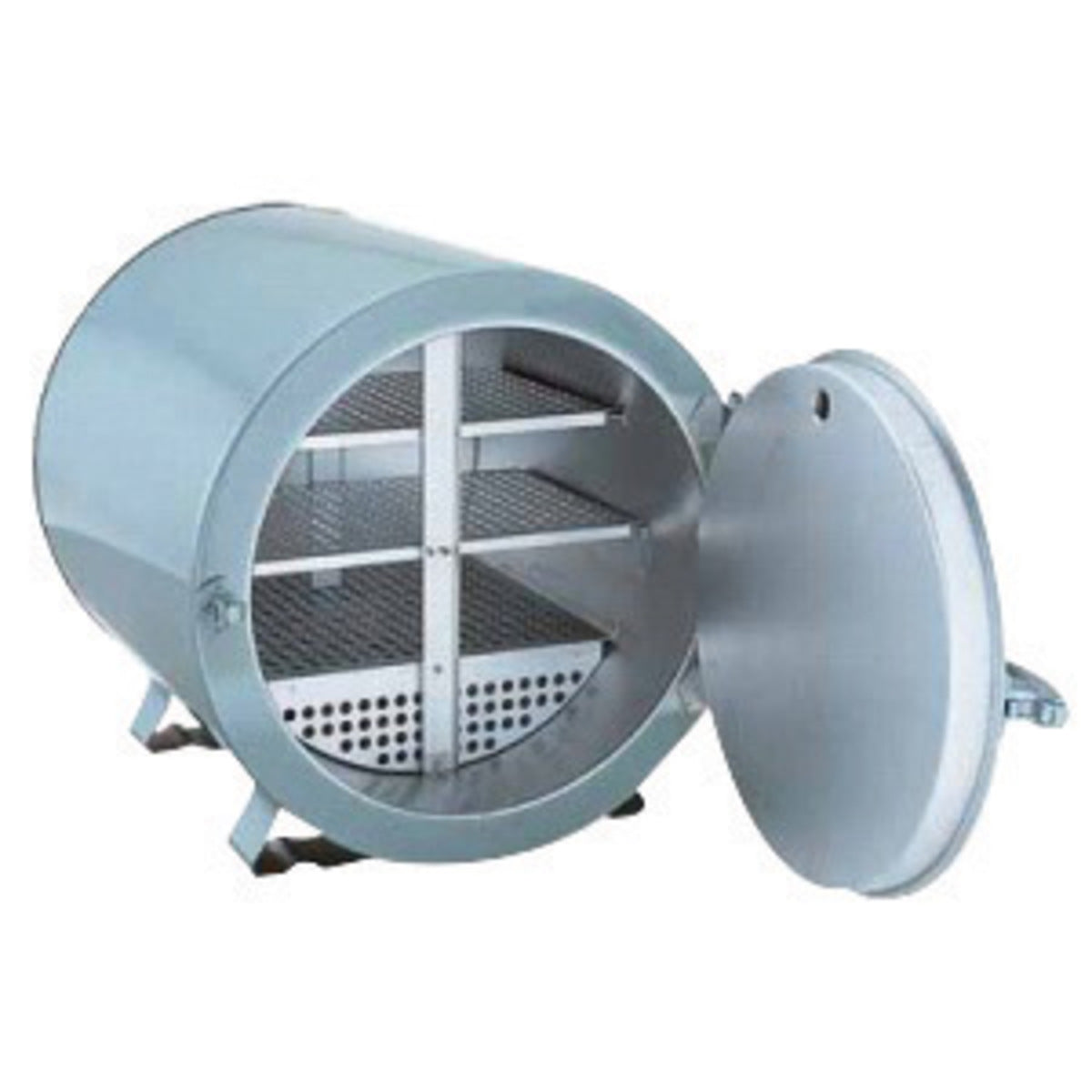

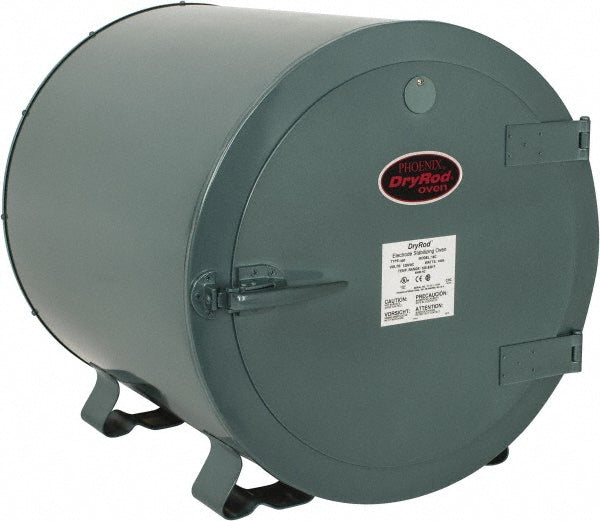

The PHOENIX INTERNATIONAL 1200200 DryRod Type 300 is a 120 V bench/floor type electrode oven with a circular shape that heats the interior evenly. Natural air currents direct moisture toward door vents, and corrosion can be prevented by aluminized steel. It has adjustable thermostatic control with a single-action door latch that opens easily and closes positively and can be padlocked.

• 400 lb capacity of 18 in (450 mm) electrodes
• Thermostatic control
• Circular oven chamber promotes airflow and consistent heating

Product Highlights

This electrode oven features a circular oven chamber, thermostatic control, and shelving that gives the ability to fit a 50 lb can.

Product Information

Standard Information

• Brand: PHOENIX INTERNATIONAL
• Manufacturer Part Number: 1200200
• Country of Origin: UNITED STATES

Technical Specifications

• Product Type: Electrode Oven
• Configuration: Horizontal
• Holding Capacity: 400 lb
• Voltage: 120/240V
• Temperature Rating: 100 - 550 F
• Polarity: AC
• Trade Name: DryRod
• Type: Type 300
• Heating element: 1,000 watts
• Thermostat: Adjustable with indicator light
• Shelved compartments: 6 compartments
• Insulation: Fiberglass batt (2.00 inches)
• Chamber depth: 19.00 inches
• Chamber diameter: 18.00 inches
• Minimum Operating Temperature: 100 F
• Power Rating: 120 VAC
• Temperature Control: Thermostat Control
• Standards: CE
• UNSPSC Code: 23271800
• Country of Origin: UNITED STATES
• Capacity: 400 lbs.
• Temperature Range: 100 - 550 F
• Capacity Wt. [Nom]: 400 lb
• Chamber Size: 18 in Dia x 19 in Depth
• Cord Length: 10 ft
• Digital Thermometer: No
• Insulation Thickness: 2 in
• Phase: Single
• Size Electrode Handled [Max]: 18 in
• Size Electrode Handled [Min]: 18 in
• Temp. Range [Max]: 550 F
• Temp. Range [Min]: 100 F
• Voltage Type: AC
• Watts [Nom]: 1000 W
