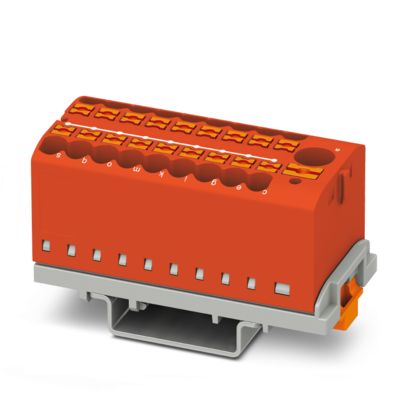

PHOENIX CONTACT 3273114 PTFIX 6/18X2,5-NS35 RD Distribution block

Product Description

The PTFIX 6/18X2,5-NS35 RD Distribution block from PHOENIX CONTACT features vertical alignment and an integrated supply. It operates at a nominal voltage of six hundred ninety volts and has a nominal current rating of twenty-four amperes.

• Nineteen connection points using push-in connection method
• Rated cross section of six square millimeters
• Mounting type compatible with NS 35/7.5 and NS 35/15

Product Highlights

This distribution block is an essential component for electrical installations, providing reliable connectivity in various applications.

Product Information

Standard Information

• Color: Red (RAL 3001)
• Flammability Rating: UL 94 V0

Technical Specifications

• Insulating Material Group: I
• Insulating Material: PA
• Static Insulating Material Application: Cold - sixty degrees Celsius
• Temperature Index of Insulation Material: 125 degrees Celsius
• Relative Insulation Material Temperature Index: 125 degrees Celsius
