Phoenix Contact 3211859 PTU 4-TWIN Feed-Through Terminal Block

Product Description

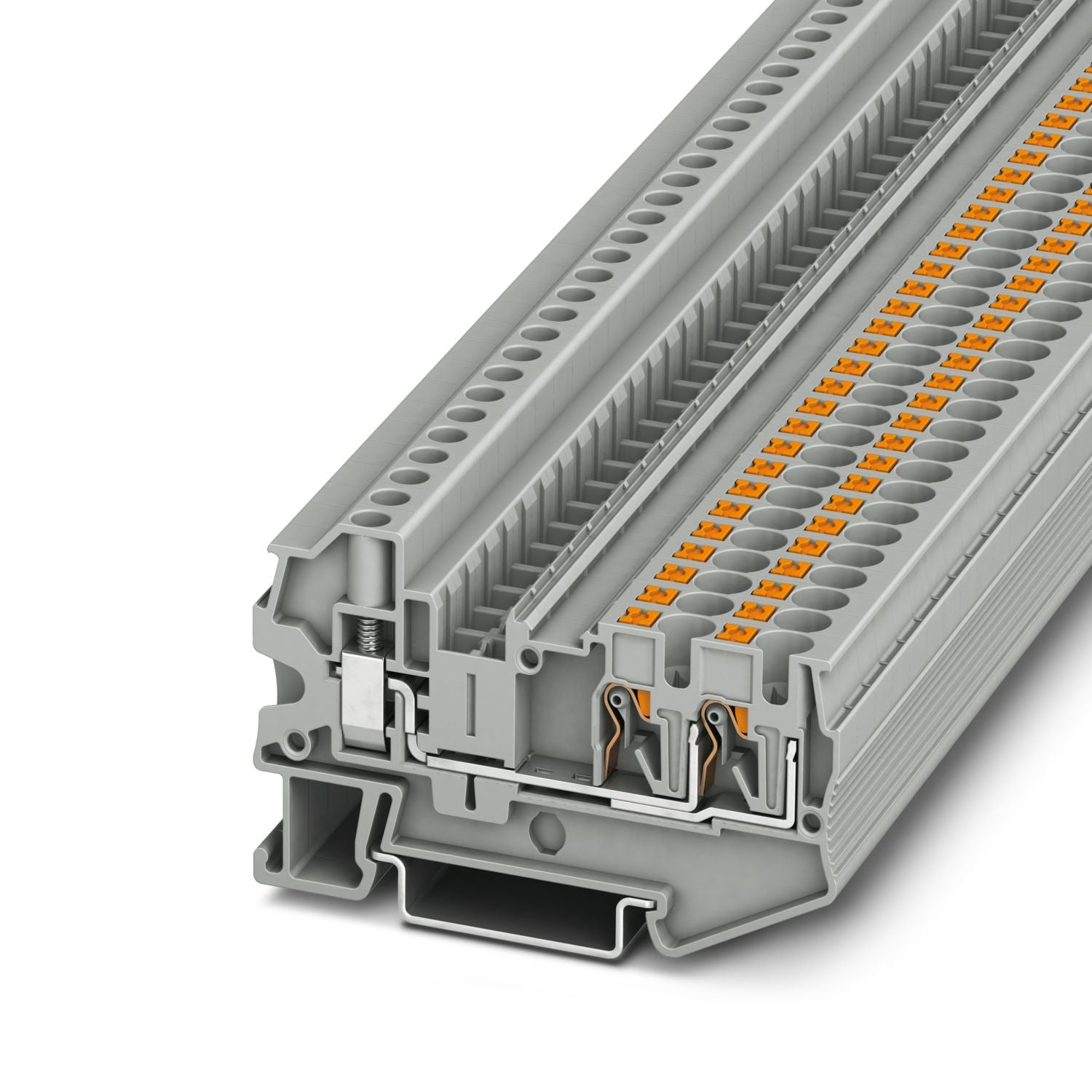

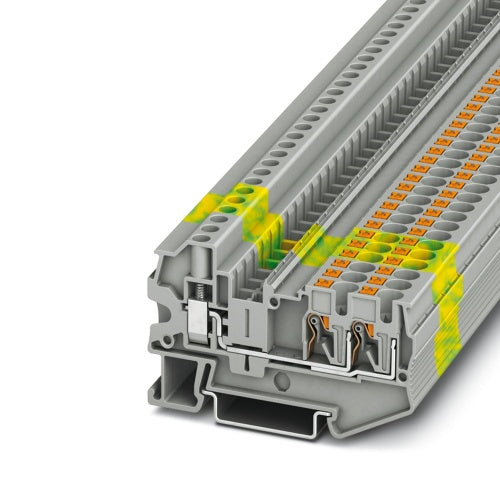

The Phoenix Contact PTU 4-TWIN 3211859 is a hybrid feed-through terminal block featuring both push-in and screw connection methods. It can handle a nominal voltage of eight hundred volts and a current of thirty-two amperes. This terminal block is designed for installation on NS 35/7.5 and NS 35/15 mounting rails and accepts conductor cross sections from zero point one four square millimeters to six square millimeters.

• Supports both push-in and screw connections.
• Rated for eight hundred volts nominal voltage and thirty-two amperes nominal current.
• Compatible with NS 35/7.5 and NS 35/15 rail systems.

Product Highlights

The terminal block allows efficient connection methods and is built for various applications requiring reliable electrical connections.

Product Information

Standard Information

• Product Type: Hybrid terminal block
• Number of Connections: 3

Technical Specifications

• Nominal Voltage: 800 V
• Nominal Current: 32 A
• Overvoltage Category: III
• Degree of Pollution: 3
• Rated Surge Voltage: 8 kV
• Maximum Load Current: 38 A
• Width: 6.2 mm
• Height: 69.3 mm
• Depth on NS 35/7.5: 42.8 mm
• Depth on NS 35/15: 50.3 mm
• Flammability Rating According to UL 94: V0
• Insulating Material: PA
• Temperature Index of Insulation Material: 125 °C
