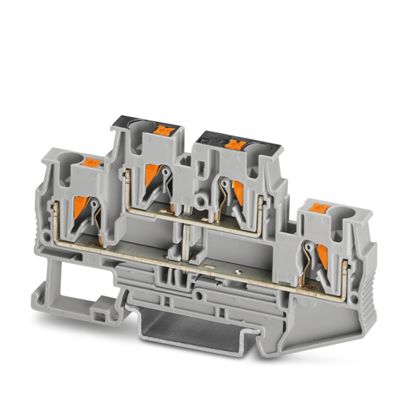

Phoenix Contact 3211825 PTTB Series Terminal Block Nylon Grey 500V 30A 24 to 10 AWG 3.29 in. L x 55 mm H x 6.2 mm W

Product Description

The Phoenix Contact 3211825 is a double-level terminal block designed for efficient wire connections. It supports a voltage of five hundred volts and a current of thirty amps, making it suitable for various industrial applications.

• Push-in connection method for quick wire assembly
• Compact design for installation in tight spaces
• Test connection available for enhanced functionality

Product Highlights

This terminal block features a nylon housing with a grey color and is suitable for wire sizes ranging from AWG 24 to AWG 10.

Product Information

Standard Information

• Brand: Phoenix Contact
• Part Number: 3211825

Technical Specifications

• Nominal Cross Section: 4 mm²
• Connection Method: Push-in
• Flammability Rating: UL 94 V0
• Standards Compliance: CSA, IEC 60947-7-1
• Fire Protection Rating: HL 1-HL 3
• Country of Origin: CN - China
• Series: PTTB Series
• Color: Grey
