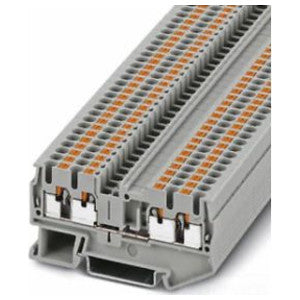

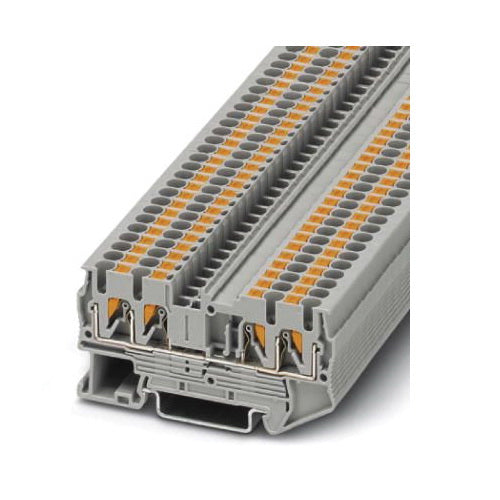

Phoenix Contact 3209578 Feed-Through Terminal Block Push-In Connection 800V 24A 26-12 AWG 5.2mm W 4 Connections

Product Description

The Phoenix Contact 3209578 is a feed-through terminal block that provides reliable connections for various electrical applications. This product offers a push-in connection system for wire sizes ranging from twenty-six to twelve AWG. The terminal block is rated for a voltage of eight hundred volts and a current capacity of twenty-four amps, making it suitable for demanding environments.

• Push-in connection for easy installation
• Four connection points for versatile wiring
• Ideal for applications in mechanical and electrical engineering

Product Highlights

This terminal block features a compact design that allows for installation in constrained spaces. The front connection enhances accessibility, and all units come with additional test connections to facilitate maintenance and troubleshooting.

Product Information

Standard Information

• Manufacturer: Phoenix Contact
• Part Number: 3209578

Technical Specifications

• Rated Current: 24A
• Rated Voltage: 800V
• AWG Range: 26 to 12
• Number of Connections: 4
• Width: 5.2 mm
• Color: Gray
• Material: Polyamide
• Mounting Type: DIN Rail
