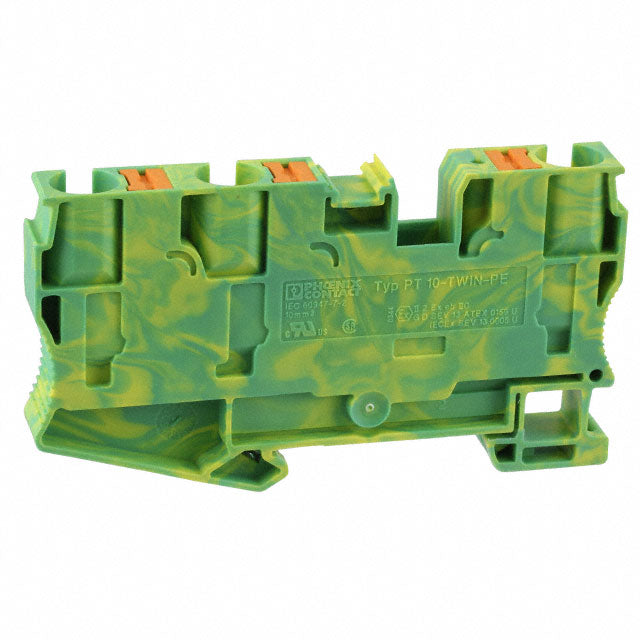

Phoenix Contact 3208745 PT Series Ground Modular Terminal Block Nylon Green/Yellow 70A 20 to 6 AWG 3.5 in L x 49.5 mm H x 10.2 mm W

Product Description

The Phoenix Contact 3208745 is a ground modular terminal block designed for reliable electrical connections. With a push-in connection method, it supports a broad range of wire sizes from 20 to 6 AWG. The terminal block features three connections, making it suitable for various applications.

• Connection method: Push-in
• Nominal cross section: 0.5 mm² to 16 mm²
• Dimensions: 3.5 inches in length, 49.5 mm in height, and 10.2 mm in width

Product Highlights

This terminal block is ideal for railway applications and is characterized by the CLIP LINE complete system for easy installation.

Product Information

Standard Information

• Brand: Phoenix Contact
• Manufacturer: Phoenix Contact

Technical Specifications

• ECCN: EAR99
• Country of Origin: CN - China
• UNSPSC: 39121410
• Series: PT Series
• Flammability rating: V0 (according to UL 94)
• Fire protection: HL 1-HL 3 (DIN EN 45545-2)
