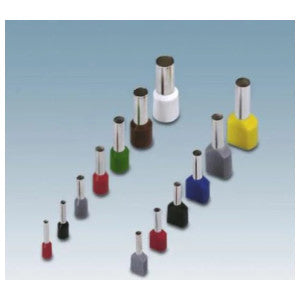

Phoenix Contact 3201369 320 Series Ferrule Copper White 20 AWG 8 mm L Sleeve 0.25 mm Insulating Collar Thickness

Product Description

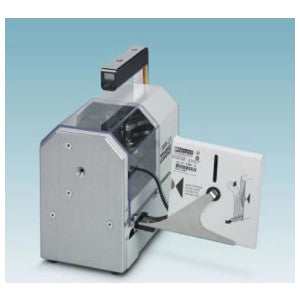

The Phoenix Contact 3201369 is a ferrule designed for use with the CF 3000 -2.5 crimping machine. It accommodates wire sizes up to 2.5 mm². This ferrule is suitable for connecting wires to terminal blocks, particularly those within the CLIPLINE system.

• Compatible with CF 3000 -2.5 crimping machine
• Designed for terminal blocks usage
• Up to 2.5 mm² wire size capability

Product Highlights

This ferrule delivers reliable connections and is easy to use in various applications.

Product Information

Standard Information

• Brand: Phoenix Contact
• Manufacturer: Phoenix Contact

Technical Specifications

• Length: 14 mm
• Maximum stripping length: 11 mm
• Inner dimension of insulating collar: 2.5 mm
• Ferrule diameter: 1.1 mm
• Insulating collar thickness: 0.25 mm
• Sleeve wall thickness: 0.15 mm
• Short-term temperature rating: 120 °C
• Max. permanent temperature rating: 105 °C
• Coating: Tin-plated (galvanic)
• Connection standard: CSA
• Flammability rating: UL 94 HB
