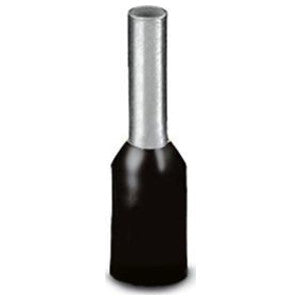

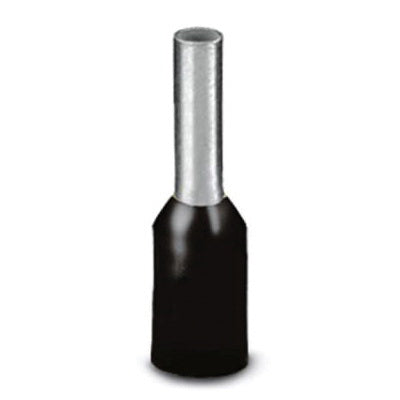

Phoenix Contact 3200043 Ferrule Sleeve Length: 8 mm Length: 14 mm Color: Black

Product Description

Phoenix Contact offers the 3200043 Ferrule, designed for use with sixteen AWG conductors. This ferrule features a length of fourteen millimeters and is made of electrolytic copper with a tin plating. It provides reliable wire termination and maintains electrical connection integrity.

• Ferrule sleeve length: 8 mm
• Conductor size: 16 AWG
• Temperature rating: 105 to 120 degrees Celsius

Product Highlights

This ferrule enhances connection reliability while reducing wire splicing issues. It is suitable for a range of electrical applications where secure terminations are needed.

Product Information

Standard Information

• Manufacturer: Phoenix Contact
• Part Number: 3200043

Technical Specifications

• Color: Black
• Material: Electrolytic Copper
• Finish: Tin Plated
• Dimensions: 1.8 mm diameter
• Length: 14 mm
• Conductor Size: 16 AWG
• Temperature Rating: 105 to 120 degrees Celsius
• Standards/Approvals: WEEE/RoHS Compliant, UL 94 Listed, cULus Listed, CSA Certified
