Phoenix Contact 3076031 UTI 2,5-L/L Installation Level Terminal Block

Product Description

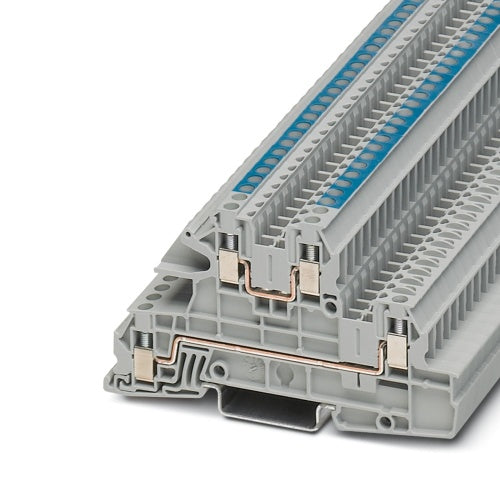

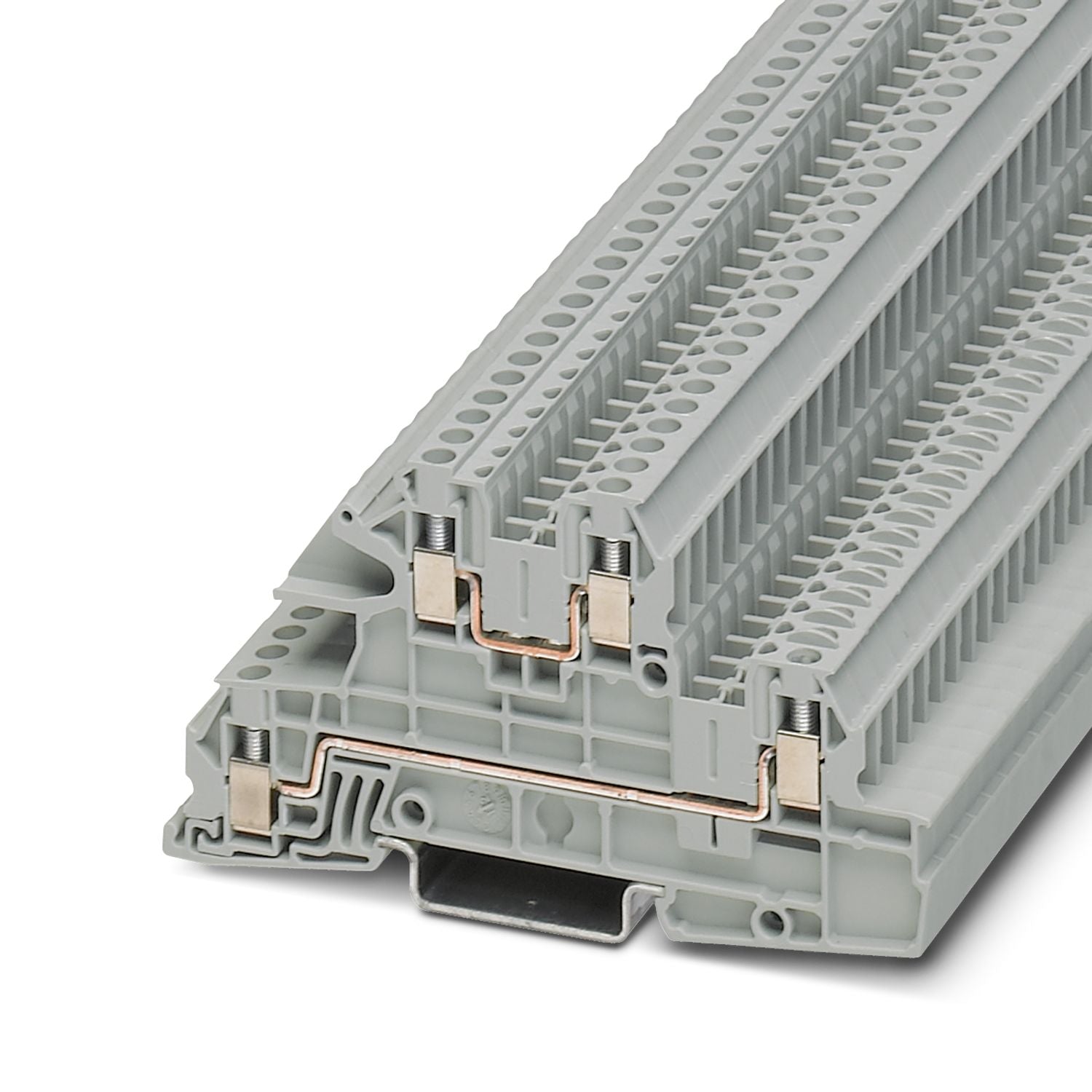

The Phoenix Contact UTI 2,5-L/L (MPN: 3076031) is an installation level terminal block specifically designed for reliable electrical connections. It utilizes screw connections across three distinct levels, accommodating conductors with cross sections from 0.2 square millimeters to 4 square millimeters. Suitable for mounting on NS 35/7.5 and NS 35/15 DIN rails, this terminal block simplifies organization in electrical installations.

• Screw connections across three levels
• Nominal voltage of 400 V and current of 24 A
• Compatible with NS 35/7.5 and NS 35/15 DIN rails

Product Highlights

This terminal block supports efficient wiring solutions and is engineered for use in various electrical applications.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3076031

Technical Specifications

• Product Type: Installation terminal block
• Number of Connections: 4
• Number of Rows: 3
• Overvoltage Category: III
• Rated Surge Voltage: 4 kV
• Maximum Power Dissipation: 1.02 W
• Current Carrying Capacity of Neutral Busbar: 140 A
• Width: 5.2 mm
• Height: 93.5 mm
• Depth on NS 35/7.5: 51.5 mm
• Depth on NS 35/15: 59 mm
