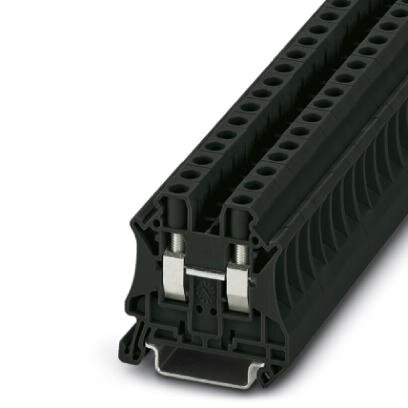

Phoenix Contact 3045208 Feed-Through Terminal Block Screw Connection 1000V 41A 24-8 AWG Black

Product Description

The Phoenix Contact 3045208 is a feed-through terminal block designed for reliable electrical connections. It is rated for a voltage of one thousand volts and a current of forty-one amperes. This terminal block is suitable for wire sizes ranging from twenty-four to eight AWG. The product features a screw connection method and allows for two connections. It has compact dimensions, with a width of eight point two millimeters and a height of forty-seven point five millimeters for NS 35/7.5 mounting.

• Rated Voltage: 1000V
• Amperage Rating: 41A
• AWG Range: 24 - 8

Product Highlights

This terminal block is ideal for panel fabrication applications where space is limited and reliable connections are required.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3045208

Technical Specifications

• Rated Current: 41A
• Rated Voltage: 1000V
• Width: 8.2 mm
• AWG Range: 24 - 8
• Color: Black
• No. of Connections: 2
• No. of Levels: 1
• Country of Origin: DE - Germany
