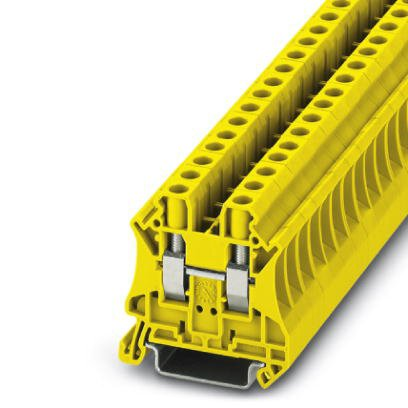

Phoenix Contact 3045172 UT Series Feed-Through Terminal Block Nylon Yellow 1000V 41A 24 to 8 AWG

Product Description

Phoenix Contact 3045172 is a UT Series feed-through terminal block designed for reliable electrical connections. It operates at a nominal voltage of 1000 volts and a nominal current of 41 amps. This terminal block features screw connections and allows for two connections for enhanced versatility.

• Connection method: Screw connection
• Cross section range: 0.2 mm² to 10 mm², compatible with AWG 24 to 8
• Compact design for efficient use of space

Product Highlights

This terminal block is suitable for various applications including industrial control and automation. Its large wiring space supports the connection of both solid and stranded conductors without the need for ferrules.

Product Information

Standard Information

• Nominal Voltage: 1000 V
• Nominal Current: 41 A

Technical Specifications

• Cross Section: 0.2 mm² - 10 mm²
• AWG Size: 24 - 8
• Width: 8.2 mm
• End Cover Width: 2.2 mm
• Country of Origin: DE - Germany
• Series: UT
• Flammability Rating: UL 94 V0
• Fire Protection Rating: HL 1-HL 3 per DIN EN 45545-2
