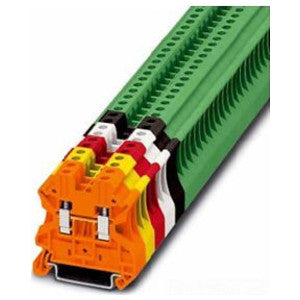

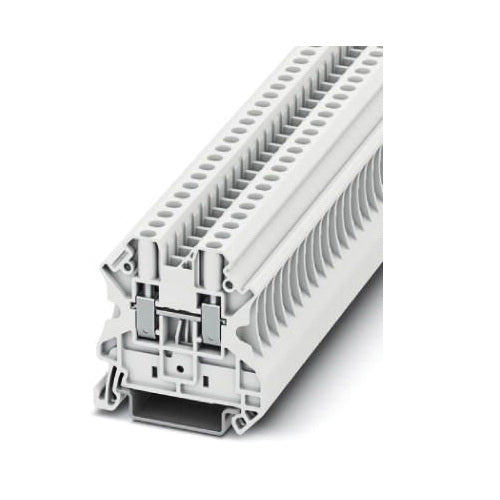

Phoenix Contact 3045130 Feed-Through Terminal Block Screw Connection 1000V 32A 26-10 AWG White

Product Description

Phoenix Contact offers the 3045130 Feed-Through Terminal Block designed for reliable electrical connections. This terminal block operates at a rated voltage of 1000V and handles a current rating of 32A. It is suitable for wire sizes from 26 to 10 AWG. Ideal for DIN rail mounting, this component ensures secure screw connections in various industrial applications.

• Voltage Rating: 1000V
• Amperage Rating: 32A
• AWG Range: 26 to 10

Product Highlights

This terminal block efficiently connects multiple circuits, supporting up to two connections. It is constructed from durable polyamide material and features a compact design for ease of installation.

Product Information

Standard Information

• Brand: Phoenix Contact
• Part Number: 3045130

Technical Specifications

• Rated Current: 32A
• Rated Voltage: 1000V
• AWG Range: 26 - 10
• Color: White
• Width: 6.2 mm
• Height: 47.5 to 55 mm
• No. of Connections: 2
• Mounting Type: DIN Rail
