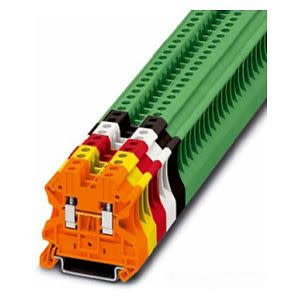

Phoenix Contact 3045101 Feed-Through Terminal Block Screw Connection 1000V 32A 26-10 AWG

Product Description

The Phoenix Contact 3045101 is a feed-through terminal block designed for secure screw connection. This product operates at a rated voltage of 1000 volts and handles a current of up to 32 amps. It is compatible with wire sizes ranging from 26 to 10 AWG. The block features a width of six point two millimeters and a height of forty-seven point five millimeters, making it suitable for various applications.

• Rated for 1000V and 32A
• Accepts wire gauges from 26 to 10 AWG
• DIN rail mountable for versatile installation

Product Highlights

The Phoenix Contact 3045101 delivers reliable connectivity for industrial control and automation tasks. Its compact design allows for easy wiring in tight spaces.

Product Information

Standard Information

• Brand: Phoenix Contact
• Manufacturer Part Number: 3045101

Technical Specifications

• Rated Current: 32A
• Rated Voltage: 1000V
• AWG Range: 26 - 10
• Width: 6.2 mm
• Height: 47.5 mm
• No. of Connections: 2
• No. of Levels: 1
• Color: Orange
• Country of Origin: CN - China
• Torque Rating: 0.6 to 0.8 N-m
