Phoenix Contact 3044607 Terminal Blocks IEC 60947-7-1 IEC/EN 60079-7 1000 (Nominal) V 1 Level 47.5 (NS 35/7.5) mm 55 (NS 35/15) mm

Product Description

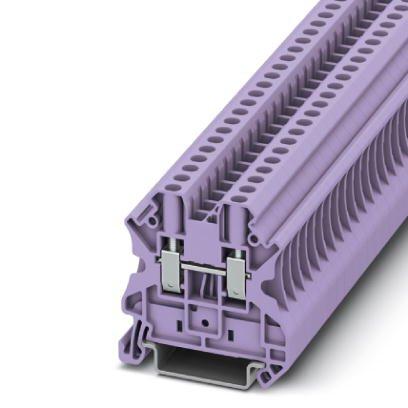

The Phoenix Contact 3044607 terminal block is designed to meet IEC 60947-7-1 and IEC/EN 60079-7 standards for electrical connections. It operates at a nominal voltage of 1000 V and supports a nominal current of 32 A. This product provides a screw connection and has two connection points, suitable for wire sizes from #26 to 10 AWG.

• Voltage Rating: 1000 V nominal
• Current Rating: 32 A
• Connection Method: Screw connection

Product Highlights

This terminal block ensures a secure and reliable connection in various industrial applications. Its compact design maximizes space efficiency while maintaining performance.

Product Information

Standard Information

• Brand: Phoenix Contact
• Part Number: 3044607

Technical Specifications

• Width: 6.2 mm
• Length: 47.7 mm
• Height: 46.9 mm
• Color: Violet
• Number of Levels: 1
• Country of Origin: CN - China
• ECCN: EAR99
• UNSPSC: 39121410
