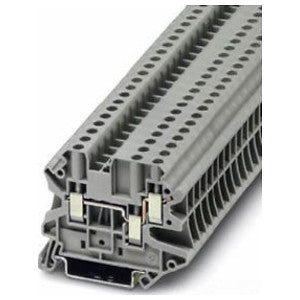

Phoenix Contact 3044364 Multi-Conductor Terminal Block Screw Connection 500V 32A 26-10 AWG 6.2mm W

Product Description

The Phoenix Contact 3044364 is a feed-through terminal block that operates at a rated voltage of five hundred volts and a maximum current of thirty-two amps. It supports wire sizes ranging from twenty-six to ten American Wire Gauge (AWG), making it a versatile choice for various electrical applications. This terminal block is designed for use with DIN rails and features screw connections for security and ease of use.

• Rated voltage: 500V
• Rated current: 32A
• AWG range: 26-10

Product Highlights

This terminal block is suitable for use in industrial control, automation, and various wiring applications. Its design accommodates three connections and is ideal for quick and reliable wiring. The compact dimensions allow easy installation in tight spaces.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3044364

Technical Specifications

• Rated voltage: 500 VAC
• Rated current: 32A
• AWG range: 26 - 10
• Color: Gray
• Dimensions: 57.8 mm L x 6.2 mm W x 46.9 mm H
• Material: Polyamide
• Number of poles: 3
• Torque rating: 0.6 to 0.8 N-m
• Temperature rating: 130 deg C
• Wire strip length: 9 mm
• Standards/Approvals: CSA Certified, RoHS Compliant
• Country of origin: DE - Germany
