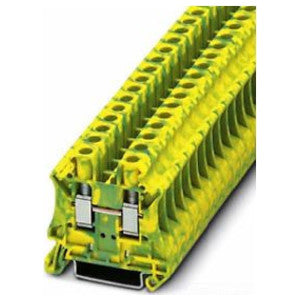

Phoenix Contact 3044157 Ground Modular Terminal Block 41 A 24 to 8 AWG

Product Description

The Phoenix Contact Ground Modular Terminal Block with MPN 3044157 is designed for secure wire connections in various applications. This terminal block supports wire sizes ranging from twenty-four to eight AWG and is ideal for DIN rail mounting.

• Amperage rating of forty-one A
• Compatible with wire strip lengths of ten mm
• Constructed with polyamide material for durability

Product Highlights

This terminal block provides reliable connections in railway, machine building, and plant engineering applications. Its compact design allows for effective wiring in limited spaces.

Product Information

Standard Information

• Brand: Phoenix Contact
• Manufacturer Part Number: 3044157

Technical Specifications

• Amperage Rating: 41 A
• Application: Railway Industry, Machine Building, Plant Engineering and Process Industry
• Color: Green/Yellow
• Connection Type: Screw
• Dimensions: 47.7 mm L x 8.2 mm W x 46.9 mm H
• Material: Polyamide
• Mounting Type: DIN Rail
• Temperature Rating: 130 deg C
• Torque Rating: 1.5 to 1.8 N-m
• Wire Strip Length: 10 mm
