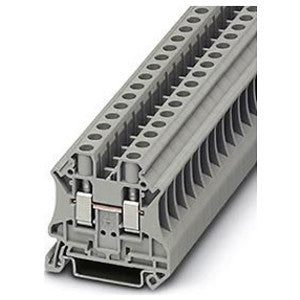

Phoenix Contact 3044131 Feed-Through Terminal Block 1000V 41A 24-8 AWG

Product Description

The Phoenix Contact 3044131 is a feed-through terminal block designed for robust electrical connections. It operates at a rated voltage of 1000 volts and a rated current of 41 amps. This terminal block is suitable for wire sizes between 24 to 8 AWG and features a compact design with an 8.2 millimeter width, making it ideal for applications requiring efficient use of space.

• DIN rail mountable
• 1 pole configuration
• Compatible with solid and stranded conductors

Product Highlights

This terminal block supports a torque rating of 1.5 to 1.8 Newton-meters for secure connections and is built from durable polyamide material.

Product Information

Standard Information

• Manufacturer: Phoenix Contact
• UPC:

Technical Specifications

• Rated Current: 41 A
• Rated Voltage: 1000 VAC
• AWG Range: 24 - 8
• Width: 8.2 mm
• Height: 46.9 mm
• Length: 47.7 mm
• Number of Poles: 2
• Temperature Rating: 130 deg C
