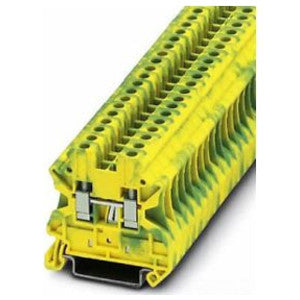

Phoenix Contact 3044128 Ground Modular Terminal Block 1000 VAC 41 A 26 to 10 AWG Wire

Product Description

The Phoenix Contact Ground Modular Terminal Block, part number 3044128, is designed for reliable electrical connections in various applications. It is rated for 1000 VAC and 41 A, supporting wire sizes from 26 to 10 AWG. This terminal block features a compact design suitable for DIN rail mounting, making it ideal for electrical and automation projects.

• Amperage rating of 41 A.
• Compatible with wire sizes from 26 to 10 AWG.
• DIN rail mounting for easy installation.

Product Highlights

This terminal block is ideal for railway applications and offers high-performance capabilities in machine building and plant engineering.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3044128

Technical Specifications

• Dimensions: 47.7 mm L x 6.2 mm W x 46.9 mm H
• Material: Polyamide
• Color: Green/Yellow
• Connection Type: Screw
• Number of Poles: 2
• Mounting Type: DIN Rail
• Torque Rating: 0.6 to 0.8 N-m
• Voltage Rating: 1000 VAC
• Amperage Rating: 41 A
• Wire Strip Length: 9 mm
• AWG Range: 26 - 10
• Temperature Rating: 120 deg C
• Standards/Approvals: CSA Certified, RoHS Compliant
• Spacing: 6.2 mm
