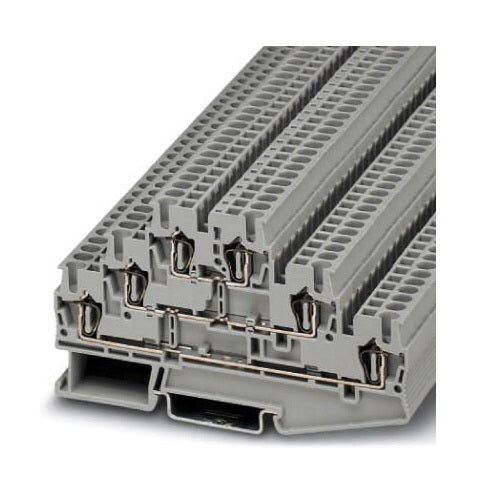

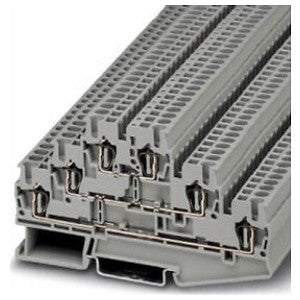

Phoenix Contact 3036042 Multi-Level Terminal Block Spring-Cage Connection 500V 20A 28-12 AWG

Product Description

The Phoenix Contact Multi-Level Terminal Block, MPN 3036042, is designed for reliable electrical connections in various applications. This terminal block features spring-cage connections and supports a voltage of five hundred volts and an amperage rating of twenty amps.

• Rated for 500V and 20A
• Compatible wire sizes range from 28 to 12 AWG
• Three levels available for increased connection options

Product Highlights

The terminal block allows easy labeling on every level, improving organization and identification. It is designed for DIN rail mounting, which enhances its versatility in different electrical setups.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3036042

Technical Specifications

• Rated Current: 20A
• Rated Voltage: 500V
• AWG Range: 28 - 12
• Width: 5.2 mm
• No. of Levels: 3
• No. of Connections: 6
• Color: Gray
• Material: Polyamide
• Mounting Type: DIN Rail
• Temperature Rating: 125°C
• Country of Origin: Poland
• UNSPSC: 39121410
