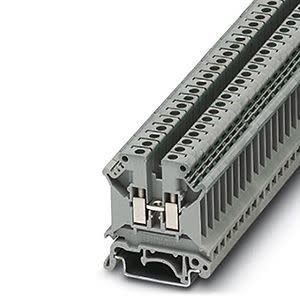

Phoenix Contact 3004362 Feed-Through Terminal Block Screw Connection 800V 32A 24-10 AWG 6.2mm

Product Description

The Phoenix Contact 3004362 Feed-Through Terminal Block is designed for use in high-voltage applications. This terminal block supports screw connection and operates effectively at 800 volts with a maximum current of 32 amps. The compatible wire range is from 24 to 10 AWG, enabling flexible installation options.

• Rated for 800V and 32A
• Compatible with 24 to 10 AWG wire sizes
• DIN rail mountable with universal foot for NS 35 and NS 32 rails

Product Highlights

This terminal block is suitable for various electrical and automation tasks, ensuring reliable connection in demanding environments.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3004362

Technical Specifications

• Rated Voltage: 800V
• Rated Current: 32A
• AWG Range: 24 - 10
• Width: 6.2 mm
• No. of Levels: 1
• No. of Connections: 2
• Material: Polyamide
• Temperature Rating: -60 to 130 °C
