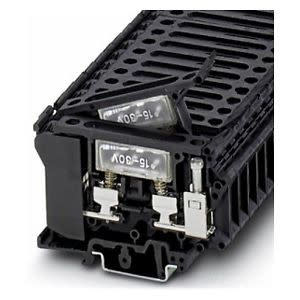

Phoenix Contact 3004265 Fuse Terminal Block Screw Connection 24V 10A 26-8 AWG 10.2mm W

Product Description

The Phoenix Contact Fuse Terminal Block with MPN 3004265 is a modular device designed for reliable electrical connections. This terminal block operates at 24 volts and supports an amperage rating of 10 amps. It is suitable for wire sizes ranging from 26 to 8 AWG, making it versatile for various applications.

• Rated Voltage: 24V
• Number of Connections: 2
• Dimensions: 79 mm by 10.2 mm

Product Highlights

This product is ideal for integrating with fuse applications. It features a screw connection method and is designed for DIN rail mounting, which ensures secure installation.

Product Information

Standard Information

• Brand: Phoenix Contact
• MPN: 3004265

Technical Specifications

• Rated Current: 10 A
• Rated Voltage: 24 V
• AWG Range: 26 to 8
• Width: 10.2 mm
• Height: 60.5 mm
• No. of Levels: 1
• No. of Connections: 2
• Color: Black
• Material: Polyamide
• Mounting Type: DIN Rail
• Torque Rating: 1.2 to 1.5 N-m
• Wire Strip Length: 12 mm
