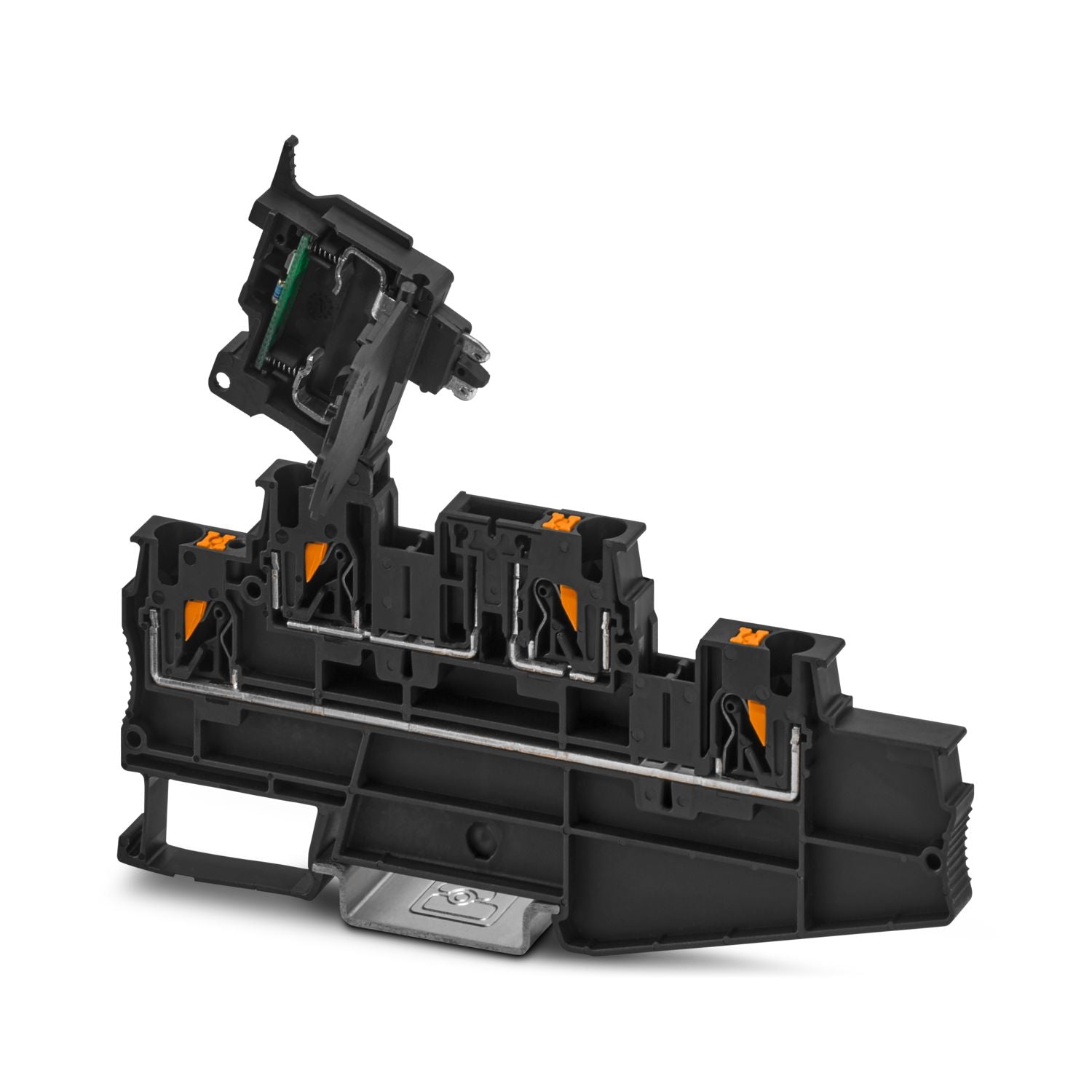

Phoenix Contact 3002609 PT 4-L/HESILED 24 (5X20) Fuse Modular Terminal Block

Product Description

The PHOENIX CONTACT 3002609 PT 4-L/HESILED 24 (5X20) is a fuse modular terminal block with push-in connection. It supports glass, ceramic, and other fuse types, specifically G / 5 x 20 fuses. This terminal block features a nominal voltage of 24 V and a nominal current of 28 A, accommodating conductor cross-sections from 0.2 mm² to 6 mm².

• Time-saving conductor connection thanks to tool-free direct-connection technology
• Convenient plugging with lower insertion force
• Easy integration and replacement of fuses with the lever element

Product Highlights

Fuse modular terminal block with push-in connection and tool-free design for easy fuse replacement and secure connections.

Product Information

Standard Information

• Brand: PHOENIX CONTACT
• Manufacturer Part Number: 3002609
• Country of Origin: IN

Technical Specifications

• Product type: Fuse terminal block
• Number of connections: 4
• Number of rows: 3
• Potentials: 2
• Overvoltage category: III
• Degree of pollution: 3
• Fuse type: Glass / ceramics / ...
• Rated surge voltage: 6 kV
• Maximum power dissipation for nominal condition: 1.02 W
• Fuse: G / 5 x 20
• LED voltage range: 12 V AC/DC ... 30 V AC/DC
• LED current range: 0.31 mA ... 0.95 mA
• Maximum power dissipation: max. 1.6 W (with single arrangement of the fuse terminal block in the event of overload) max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload) max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit) max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
• Level 1 Connection method: Push-in connection
• Level 1 Stripping length: 10 mm ... 12 mm
• Level 1 Internal cylindrical gage: A4
• Level 1 Connection in acc. with standard: IEC 60947-7-3
• Level 1 Conductor cross-section rigid: 0.2 mm² ... 6 mm²
• Level 1 Cross section AWG: 24 ... 10 (converted acc. to IEC)
• Level 1 Conductor cross-section flexible: 0.2 mm² ... 6 mm²
• Level 1 Conductor cross-section, flexible [AWG]: 24 ... 10 (converted acc. to IEC)
• Level 1 Conductor cross-section flexible ultrasound-compressed: 0.34 mm² ... 6 mm²
• Level 1 Conductor cross-section, flexible [AWG] ultrasound-compressed: 22 ... 10 (converted acc. to IEC)
• Level 1 Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm²
• Level 1 Flexible conductor cross-section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm²
• Level 1 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm²
• Level 1 Nominal cross section: 4 mm²
• Level 1 Nominal current: 28 A
• Level 1 Maximum load current: 32 A (with 6 mm² conductor cross-section, rigid)
• Level 1 Nominal voltage: 24 V
• Level 2 Connection method: Push-in connection
• Level 2 Stripping length: 10 mm ... 12 mm
• Level 2 Connection in acc. with standard: IEC 60947-7-3
• Level 2 Conductor cross-section rigid: 0.2 mm² ... 6 mm²
• Level 2 Cross section AWG: 24 ... 10 (converted acc. to IEC)
• Level 2 Conductor cross-section flexible: 0.2 mm² ... 6 mm²
• Level 2 Conductor cross-section, flexible [AWG]: 24 ... 10 (converted acc. to IEC)
• Level 2 Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm²
• Level 2 Flexible conductor cross-section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm²
• Level 2 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm²
• Level 2 Nominal cross section: 4 mm²
• Level 2 Nominal current: 6.3 A
• Level 2 Maximum load current: 6.3 A (the current is determined by the fuse used)
• Level 2 Nominal voltage: 24 V (the voltage is determined by the light indicator.)
• Level 1 Conductor cross-section rigid directly pluggable: 0.5 mm² ... 6 mm²
• Level 1 Conductor cross-section, rigid [AWG] directly pluggable: 20 ... 10 (converted acc. to IEC)
• Level 1 Conductor cross-section flexible (ferrule without plastic sleeve) directly pluggable: 0.5 mm² ... 4 mm²
• Level 1 Flexible conductor cross-section (ferrule with plastic sleeve) directly pluggable: 0.5 mm² ... 4 mm²
• Level 2 Conductor cross-section rigid directly pluggable: 0.5 mm² ... 6 mm²
• Level 2 Conductor cross-section, rigid [AWG] directly pluggable: 20 ... 10 (converted acc. to IEC)
• Level 2 Conductor cross-section flexible (ferrule without plastic sleeve) directly pluggable: 0.5 mm² ... 4 mm²
• Level 2 Flexible conductor cross-section (ferrule with plastic sleeve) directly pluggable: 0.5 mm² ... 4 mm²
• Rated data (ATEX/IECEx) Identification:  II 3 G Ex ec llC Gc
• Operating temperature range: -60 °C ... 130 °C
• Bridge data 19 A / 4 mm²: for bridging with bridge
• Bridge data 275 V: - At bridging between non-adjacent terminal blocks
• Bridge data 275 V - At cut-to-length bridging with cover: 275 V
• Rated insulation voltage: 250 V
• Rated voltage: 275 V
• Nominal cross section: 4 mm²
• Rated cross section AWG: 12
• Connection capacity rigid: 0.2 mm² ... 6 mm²
• Connection capacity AWG: 24 ... 12
• Connection capacity flexible: 0.2 mm² ... 4 mm²
• Rated current: 6.3 A (4 mm²)
• Maximum load current: 6.3 A (6 mm²)
• Contact resistance: 5 mΩ
• Temperature increase: 40 K (29 A/4 mm²)
• Width: 6.2 mm
• Height: 119.5 mm
• Depth: 82.6 mm
• Depth on NS 35/7,5: 84.1 mm
• Depth on NS 35/15: 91.6 mm
• Flammability rating according to UL 94: V0
• Insulating material group: I
• Insulating material: PA
• Static insulating material application in cold: -60 °C
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Open side panel: Yes
• Specification: DIN EN 50155 (VDE 0115-200):2008-03
• Spectrum: Long life test category 1, class B, body mounted
• Frequency: f1= 5 Hz to f2= 150 Hz
• ASD level: 0.964 (m/s²)²/Hz
• Acceleration: 5g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis (pos. and neg.)
• Result: Test passed
• Pulse shape: Half-sine
• Shock duration: 30 ms
• Number of shocks per direction: 3
• Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
• Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
• Ambient temperature (assembly): -5 °C ... 70 °C
• Ambient temperature (actuation): -5 °C ... 70 °C
• Permissible humidity (operation): 20 % ... 90 %
• Permissible humidity (storage/transport): 30 % ... 70 %
• Mounting type: NS 35/7,5 NS 35/15
• Series: CLIPLINE PT
• Type: Disconnect, Feed Through
• Disconnect Type: Fuse, Lever
• Number of Positions: 4
• Number of Levels: 3
• Termination Style: Push In
• Current - UL: 5 A
• Voltage - UL: 600V
• Wire Gauge or Range - mm²: 0.2-6mm²
• Features: Diode
• Fuse Type: 5mm x 20mm
• Item: Terminal Block
• Connection Type: Push-In
