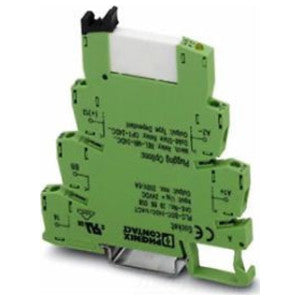

Phoenix Contact 2966906 Relay Module 250 V AC/V DC 12 V DC Coil

Product Description

The Phoenix Contact Relay Module with MPN 2966906 is designed for reliable performance in various industrial applications. This relay module operates at a voltage rating of 250 V AC/V DC and provides an amperage rating of 6 A. It features screw termination and one pole operation, with a coil voltage of 12 V DC.

• Voltage Rating: 250 V AC/V DC
• Amperage Rating: 6 A
• Coil Voltage: 12 V DC

Product Highlights

This relay module is ideal for industrial control and automation setups. It enables efficient power management and switching capabilities in complex systems.

Product Information

Standard Information

• Brand: Phoenix Contact
• Minimum Order Quantity: 1

Technical Specifications

• Type: Highly Compact Universal
• Contact Form: SPDT
• Dimensions: 80 mm H x 6.2 mm W x 94 mm D
• Amperage Rating: 15.3 mA
• Coil Voltage: 12 VDC
• Contact Rating: 6 A
• Temperature Rating: -40 to 60 deg C
• Standards/Approvals: IEC 60664/62103, EN 50178, RoHS Compliant
