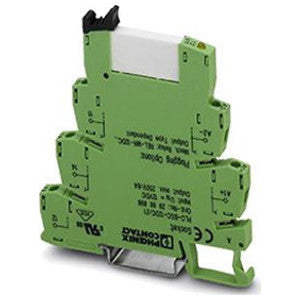

Phoenix Contact 2966197 DIN Rail Mountable PLC Relay Module Green SPDT 120V 6A

Product Description

The Phoenix Contact 2966197 is a DIN rail mountable PLC relay module designed for efficient control applications. This module operates at 120 volts AC with a contact rating of 6 amps. It measures six point two millimeters wide, eighty millimeters high, and ninety-four millimeters deep.

• SPDT contact form suitable for various applications
• Compatible with DIN rail NS 35/7.5 for easy installation
• Includes base terminal block and pluggable miniature relay

Product Highlights

This compact relay module is designed for applications requiring reliable electrical control. Its high efficiency and ease of installation make it a popular choice among professionals.

Product Information

Standard Information

• Brand: Phoenix Contact
• Manufacturer: Phoenix Contact

Technical Specifications

• Amperage Rating: 6A
• Coil Voltage: 120 VAC/VDC
• Contact Form: SPDT
• Number of Poles: 1
• Dimensions: 80 mm H x 6.2 mm W x 94 mm D
• Temperature Rating: -40 to 60 deg C
• Standards/Approvals: IEC 60664/62103, EN 50178
• Mounting Type: DIN Rail
