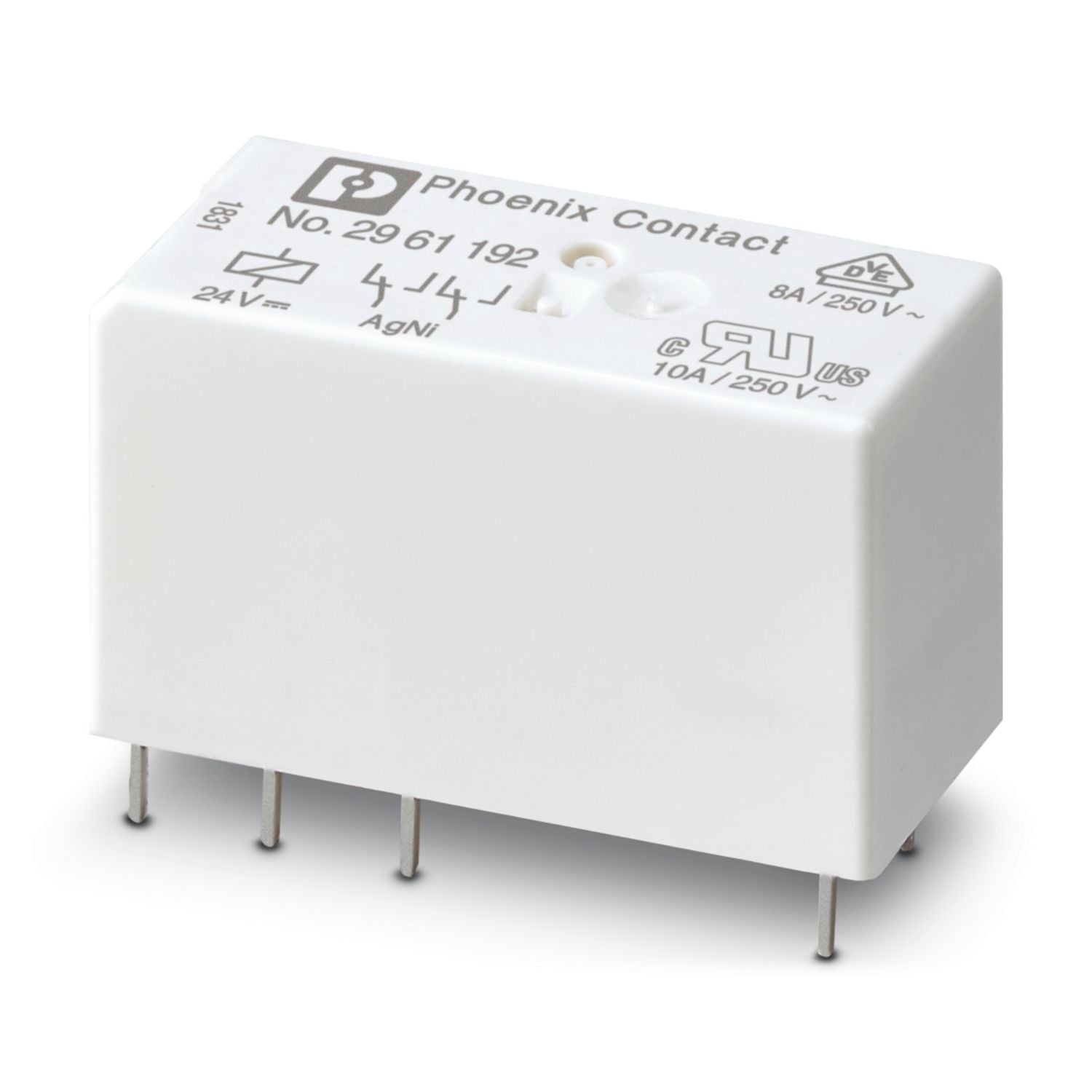

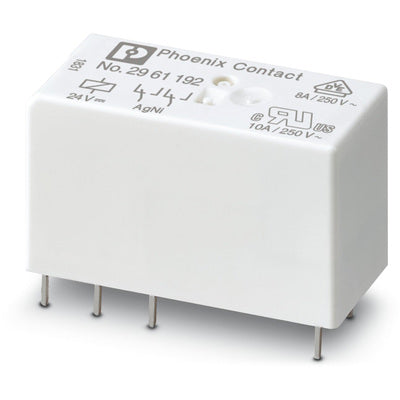

Phoenix Contact 2961192 REL-MR- 24DC/21-21 Industrial Relay 24VDC REPLACEMENT RELAY

Product Description

The PHOENIX CONTACT 2961192 REL-MR- 24DC/21-21 is a plug-in miniature electromechanical power relay with a 24VDC input voltage. It features 2 changeover contacts and is suitable for various industrial applications. The relay has a limiting continuous current of 8A and a maximum switching voltage of 250V AC/DC.

• RT III-proof (wash-proof)
• Switching current of up to 8 A
• 2 changeover contacts

Product Highlights

This relay is ideal for general purpose use, offering reliable performance in a compact design.

Product Information

Standard Information

• Brand: PHOENIX CONTACT
• Manufacturer Part Number: 2961192
• Country of Origin: AT

Technical Specifications

• Manufacturer: Phoenix Contact
• MPN: 2961192
• Product Type: RELAY
• Number of Items: 1.0
• Product type: Single relay
• Operating mode: 100% operating factor
• Mechanical service life: 3x 10 7 cycles
• Insulation: Basic insulation
• Overvoltage category: III
• Pollution degree: 3
• Maximum power dissipation for nominal condition: 0.41 W
• Test voltage (Winding/contact): 5 kV AC (50 Hz, 1 min.)
• Test voltage (Contact/contact): 2.5 kV AC (50 Hz, 1 min.)
• Test voltage (open contact): 1 kV (50 Hz, 1 min.)
• Nominal input voltage U N: 24 V DC
• Input voltage range: 15.6 V DC ... 59.52 V DC
• Drive and function: monostable
• Drive (polarity): non-polarized
• Typical input current at U N: 17 mA
• Typical response time: 7 ms
• Typical release time: 3 ms
• Coil resistance: 1440 Ω ±10 % (at 20 °C)
• Contact switching type: 2 changeover contacts
• Type of switch contact: Single contact
• Contact material: AgNi
• Maximum switching voltage: 250 V AC/DC
• Minimum switching voltage: 5 V (10 mA)
• Limiting continuous current: 8 A
• Maximum inrush current: 25 A (20 ms)
• Min. switching current: 10 mA (5 V)
• Interrupting rating (ohmic load) max.: 192 W (24 V DC) 96 W (48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 60 W (at 220 V DC) 2000 VA (250 V AC)
• Switching capacity: 2 A (24 V (DC13)) 0.2 A (250 V (DC-13)) 3 A (24 V (AC15)) 3 A (120 V (AC15)) 3 A (250 V (AC15))
• Motor load according to UL 508: 1/4 HP, 120 V AC 1/2 HP, 240 V AC
• Connection method: Plug / solder connection
• Width: 12.7 mm
• Height: 29 mm
• Depth: 15.7 mm
• Degree of protection: RT III
• Ambient temperature (operation): -40 °C ... 85 °C
• Ambient temperature (storage/transport): -40 °C ... 85 °C
• Corrosive gas test: ISA-S71.04. G3 Harsh Group EN 60068-2-60
• Standards/regulations: IEC 60664 EN 50178 EN 61810-1
• Assembly note: Can be aligned without spacing (> 70 °C ≥ 2.5 mm)
• Mounting position: any
• Brand: Phoenix..
• Model / MPN: 2961192
• Manufacturer Part Number: 2961192
• Number of Pins: 8
• Mounting Type: Through Hole
• Series: REL-MR
• Voltage Rating: 250 V
• Primary Type: Power Relays
• Relay Type: General Purpose
• Alternate Mfr Part Number: REL-MR- 24DC/21-21
• Type: Relay
• Function: Monostable
• Approvals: cUL Recognized, cULus Recognized, EAC, GL, PRS, UL Recognized, VDE approval of drawings
• Termination: PC Pin
• Standards: cULus, VDE, WEEE
• Coil Voltage: 24VDC
• Contact Current Rating: 8 A
• Contact Form: DPDT (2 Form C)
• Current Rating: 8 A
• Control Voltage: 24 V
• Contact Voltage Rating: 250 VAC, 250 VDC
• Coil Current: 17 mA
• Coil Type: Non Latching
• Contact Material: Silver Nickel (AgNi)
• Operate Time: 7 ms
• Release Time: 3 ms
• Operating Temperature: -40°C ~ 85°C
• Approval Agency: cULus, EAC, UR
• Rated current: 8A (continuous) 25A max. inrush current (20ms) 2A (24Vdc; DC-13) 3A (250Vac; AC-15) 0.2A (250Vdc; DC-13) 3A (24Vac; AC-15) 3A (120Vac; AC-15)
• Rated Voltage (DC): 250Vdc max. switching voltage
• Rated voltage (AC): 250Vac max. switching voltage
• Rated insulation voltage (Ui): test voltage between contacts (50Hz; 1min.) 2.5kVac / 2500 V test voltage between winding and contact (50Hz; 1min.) 5kVac / 5000 V
• Control Voltage (DC): 15.6-59.52Vdc (24Vdc / 48Vdc nom.)
• Protection functions: Overvoltage category III
• Mounting mode: Plug-in mounting can be mounted without spacing with neighboring devices up to 70°C. A minimum 2.5mm spacing is required above that temperature
• Response time: (coil) 7ms / 0.007 s
• Contacts type: 2C/O / DPDT contacts
• Net Width (mm): 12.7 mm
• Material: Silver-Nickel (AgNi) contacts
• Ambient air temperature for operation: -40...+185°F / -40...+85 °C
• Ambient air temperature for storage: -40...+185°F / -40...+85 °C
• Current consumption: 17mA
• Mechanical durability (at no load): 30 000 000 operations
• Compliant with standard(s): cUL Recognized - Approval ID FILE E 228652 UL Recognized - Approval ID FILE E 228652 EAC - Approval ID TR_TS_D_00573_c UL Recognized - Approval ID FILE E 228652 EAC - Approval ID RU*C-DE.*08.B.00010 VDE Approval - Approval ID 40007758 VDE Approval - Approval ID 40048281 cUL Recognized - Approval ID FILE E 228652 cUL Recognized - Approval ID FILE E 172140 UL Recognized - Approval ID FILE E 172140 Corrosive gas test - Identification -- ISA-S71.04. G3 Harsh Group EN 60068-2-60 IEC 60664 EN 50178 EN 61810-1
• Location of origin: AT (Austria)
• Degree of pollution: 3
