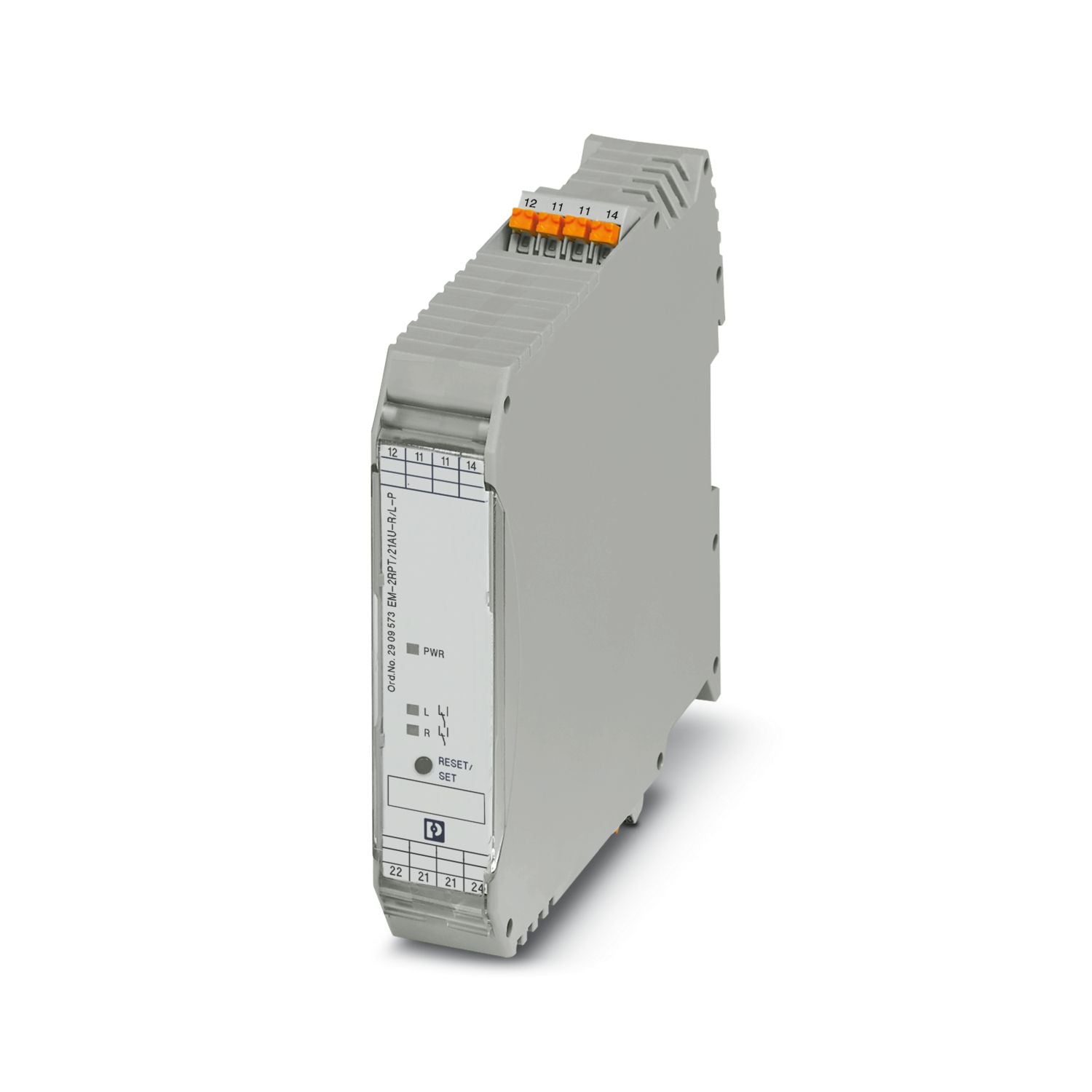

Phoenix Contact 2909573 EM-2RPT/21AU-R/L-P Extension Module

Product Description

The Phoenix Contact 2909573 EM-2RPT/21AU-R/L-P is a relay extension module designed for use with ELR hybrid motor starters. This module provides critical feedback for forward and reverse operations when a control signal is active. It features a reliable push-in connection and comes with a DIN rail connector, making installation straightforward.

• Relay extension module for effective control of motor starters
• Feedback for both forward and reverse operations
• Simple installation with a DIN rail connector

Product Highlights

This relay extension module aids in efficiently controlling hybrid motor starters, ensuring accurate feedback and dependable connections.

Product Information

Standard Information

• Product Family: CONTACTRON
• Mounting Type: DIN rail

Technical Specifications

• Rated Insulation Voltage: 250 V
• Rated Surge Voltage: 4 kV
• Operating Voltage: 24 V DC, 230 V AC
• Switching Capacity: 3 A (230 V, AC15), 2 A (24 V, DC13)
• Degree of Protection: IP20
• Ambient Temperature (Operation): -25 °C to 70 °C
• Width: 22.5 mm
• Height: 106.6 mm
• Depth: 113.7 mm
